Vacuum Cleaner Motor

Motor family, wattage and appearance are starting clues—not compatibility proof.

This component profile separates motor architecture, airflow-performance measurements and exact replacement checks so buyers can compare documented boundaries without inventing an OEM or fit relationship.

What this profile covers
Included
  • Universal and brushless suction motor-fan families
  • Thru-flow and bypass cooling arrangements
  • Electrical, airflow, pressure, mechanical and protection checks
Excluded
  • Brush-roll and wheel-drive motors
  • Model-specific repair instructions
  • Unverified aftermarket interchangeability

First published 2026-08-09 · Last verified 2026-08-09

Physical resemblance, matching wattage, a generic family name or a seller claim does not establish compatibility. Verify the current manufacturer part number, appliance model and serial scope, electrical and control specification, mechanical and airflow interfaces, protection requirements and approved service documentation.

Official component referenceDomel Series 759 brushless bypass vacuum motor on a light blue background
Domel Series 759 brushless bypass vacuum motor; the WCB canvas changes presentation only and does not alter the official product image. Official image source
Vacuum Cleaner Motor key facts
FactTechnical referenceScope boundary
Core outputAn airflow-pressure operating point created by the motor and fan or blower assemblySeries-universal motor/fan systems within ASTM F2105-21; other architectures require their applicable manufacturer method.
Cooling familiesThru-flow and bypass are distinct documented arrangementsDomel published product portfolio; not a universal naming rule for every manufacturer.
Electrical rangeCannot be inferred from package sizeNamed Domel families and Johnson U9825-001 only.
Performance boundaryMotor/fan inlet data is not the same as cleaning performance at the floorThe named standards and their stated equipment scopes.
Compatibility ruleExact documentation must pass identity, electrical, mechanical, system and safety checksProcurement framework synthesized by WCB from the reviewed fields; not a manufacturer compatibility declaration.

Functional boundary

Where the component sits in the larger system

This WCB flow describes documented functions, not one universal product construction.

  1. 01

    Electrical input and control

    Supplies the specified AC or DC input and, for electronically commutated designs, the required controller signals and protection.

    Reviewed Domel brushless families and UL standards overview.Sources: Domel brushless, UL integral controls

  2. 02

    Electromagnetic conversion

    The motor converts electrical input into shaft rotation within its stated voltage, load, thermal and control boundary.

    Nidec cordless-vacuum case study and named lineup.Sources: Nidec cordless

  3. 03

    Fan or blower stage

    One or more fan stages use shaft power to create airflow and pressure characteristics.

    Domel bypass product group and ASTM F2105 scope.Sources: Domel bypass, Astm F2105

  4. 04

    Air path and operating point

    Restriction, fan geometry and system interfaces determine where airflow and pressure operate together.

    Johnson Electric U9825-001 datasheet only.Sources: Johnson U9825

  5. 05

    Cooling and protection

    Cooling path, insulation and thermal or electronic protection must remain consistent with the approved appliance design.

    Family-level architecture and standards boundary; no certification is inferred.Sources: Domel brushless, UL integral controls

Architecture families

Different component architectures solve different constraints

No architecture is a universal winner, and a family label is not a replacement-part specification.

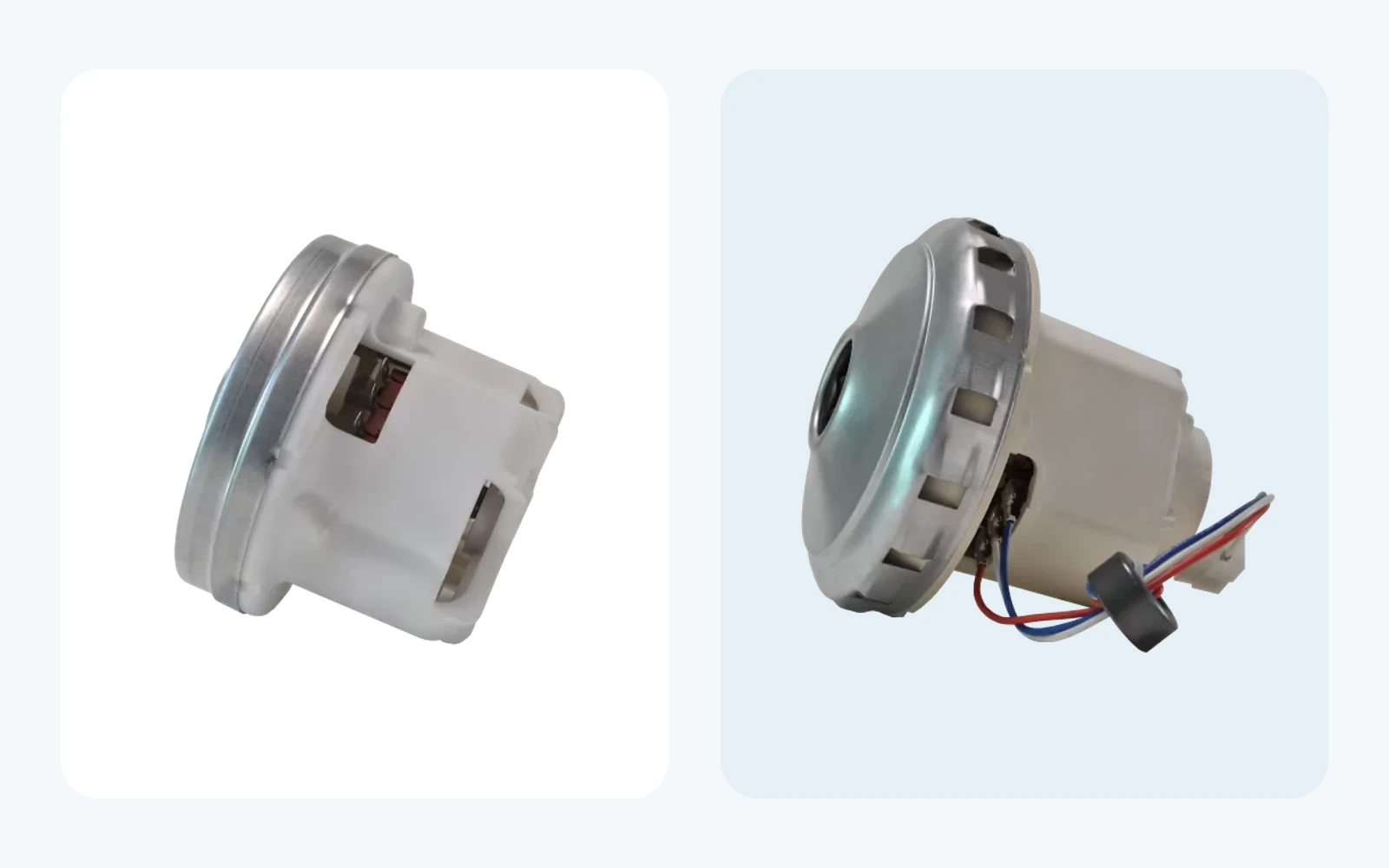

Domel Series 728 thru-flow and Series 729 bypass brushless vacuum motors shown side by side
Official technical image

WCB side-by-side layout of two official Domel product images: Series 728 thru-flow and Series 729 bypass. The images explain visible family differences but do not prove replacement compatibility.

How to use this visualUse the photographed family only to understand documented construction context; do not infer exact product fit.

Official image source

Universal commutator motor

Principle
Mechanical commutation through brushes and a commutator drives the motor/fan assembly.
Application boundary
Domel identifies universal commutator motors as the foundation of its vacuum-motor offer; ASTM F2105 specifically covers series-universal motor/fan systems.
Benefits
  • Broad documented AC and low-voltage family coverage
  • Established motor/fan test-method scope
Limitations
  • Brush and commutator wear remain service-life variables
  • Family data cannot replace exact part data
Buyer check
Confirm voltage, fan stage, cooling arrangement, life-test condition, brush system and approved part number.

Domel portfolio and ASTM F2105-21 scope.Sources: Domel thruflow, Domel bypass, Astm F2105

Brushless DC / EC motor

Principle
Electronic commutation replaces the brush-commutator interface and requires a compatible drive or integrated controller.
Application boundary
Domel lists battery and corded brushless vacuum families; Nidec documents cordless vacuum motors.
Benefits
  • Manufacturers describe compact, efficient and long-life designs
  • Control can support application-specific operating modes
Limitations
  • Controller, firmware, sensors and wiring become compatibility fields
  • Manufacturer benefit claims are family-specific
Buyer check
Approve the motor and control system together, including input range, signals, protection and operating point.

Named Domel and Nidec families only.Sources: Domel brushless, Nidec cordless

Thru-flow cooling

Principle
Working air passes through or around the motor section as part of the cooling path.
Application boundary
Domel separates thru-flow motors for dry applications and publishes brushless thru-flow families.
Benefits
  • Compact integrated air path in documented dry applications
Limitations
  • The reviewed Domel product grouping limits thru-flow families to dry application context
  • Air-path changes can alter cooling
Buyer check
Confirm the exact permitted medium, cooling route, orientation, filters and restriction range.

Domel product taxonomy; not a universal prohibition for every design.Sources: Domel thruflow, Domel brushless

Bypass cooling

Principle
A separate cooling-air route isolates motor cooling from the working-air stream.
Application boundary
Domel publishes bypass motors for dry and wet applications and brushless bypass series.
Benefits
  • Documented dry/wet application families
  • Separate cooling path in the named designs
Limitations
  • Bypass does not alone establish wet-use approval
  • Seals, discharge orientation and insulation still vary
Buyer check
Match dry/wet declaration, discharge geometry, seals, insulation, mounting and exact electrical data.

Domel bypass product group only.Sources: Domel bypass

Specification dictionary

What component specifications do—and do not—mean

Vacuum Cleaner Motor specification dictionary
SpecificationPurchasing meaningReporting boundaryComparison caution
Rated voltage and frequencyDefines the permitted supply boundary and region or battery-system interface.AC/DC type, voltage range and frequency must remain attached to the exact part.The same package or family can have multiple voltage versions.
Input powerElectrical power consumed at the declared operating condition.It is not air power, shaft output or floor pickup.Do not compare without load point, voltage and test method.
AirflowVolume flow at a stated restriction or opening.Measurement location and restriction define the value.Open-flow data cannot be treated as the operating value inside another appliance.
Sealed vacuum / static pressurePressure potential near a no-flow condition.The sealed point is different from a working airflow point.High sealed vacuum alone does not establish debris pickup or usable airflow.
Air powerA calculated combination of airflow and pressure at a stated point.ASTM F2105 locates comparison at the motor/fan system inlet under its method.It is not input watts and not whole-appliance cleaning performance.
SpeedHelps define the motor-fan operating point and control requirement.Speed changes with restriction and control mode.Higher rpm is not automatically higher usable suction or longer life.
Life-test conditionShows the duty and restriction boundary behind a stated typical life value.Cycle, orifice, temperature and load are inseparable from the result.Hours from different cycles are not directly equivalent.
Envelope, mount and interfacesDefines whether the part can be integrated without changing structure, ducting, sealing or wiring.Diameter and length alone omit mount, fan, discharge, connector and revision details.Physical resemblance does not establish fit.
Diagram separating electrical input, motor operating point, airflow, sealed vacuum, air power and cleaning outcome
WCB explanatory visual

WCB measurement-boundary map. Input power, airflow, pressure and air power answer different questions and remain dependent on the stated test point and method.

How to use this visualKeep every reported value inside its stated unit, operating point, test method and product scope.

Diagram sourcesJohnson U9825, Astm F2105, IEC 62885 2

Rated voltage and frequency evidence

Named published families only.Sources: Domel brushless, Johnson U9825

Input power evidence

Sources: Astm F2105

Airflow evidence

Johnson Electric U9825-001 datasheet.Sources: Johnson U9825

Sealed vacuum / static pressure evidence

Johnson Electric U9825-001 datasheet.Sources: Johnson U9825

Air power evidence

Sources: Astm F2105

Speed evidence

Named Nidec development and Johnson datasheet.Sources: Nidec cordless, Johnson U9825

Life-test condition evidence

Johnson Electric U9825-001 only; no field-life prediction.Sources: Johnson U9825

Envelope, mount and interfaces evidence

Reviewed Domel families and Johnson U9825-001.Sources: Domel brushless, Domel bypass, Johnson U9825

Evidence + WCB interpretation

Application matrix

Official application language narrows the review; it does not prove exact product fit.

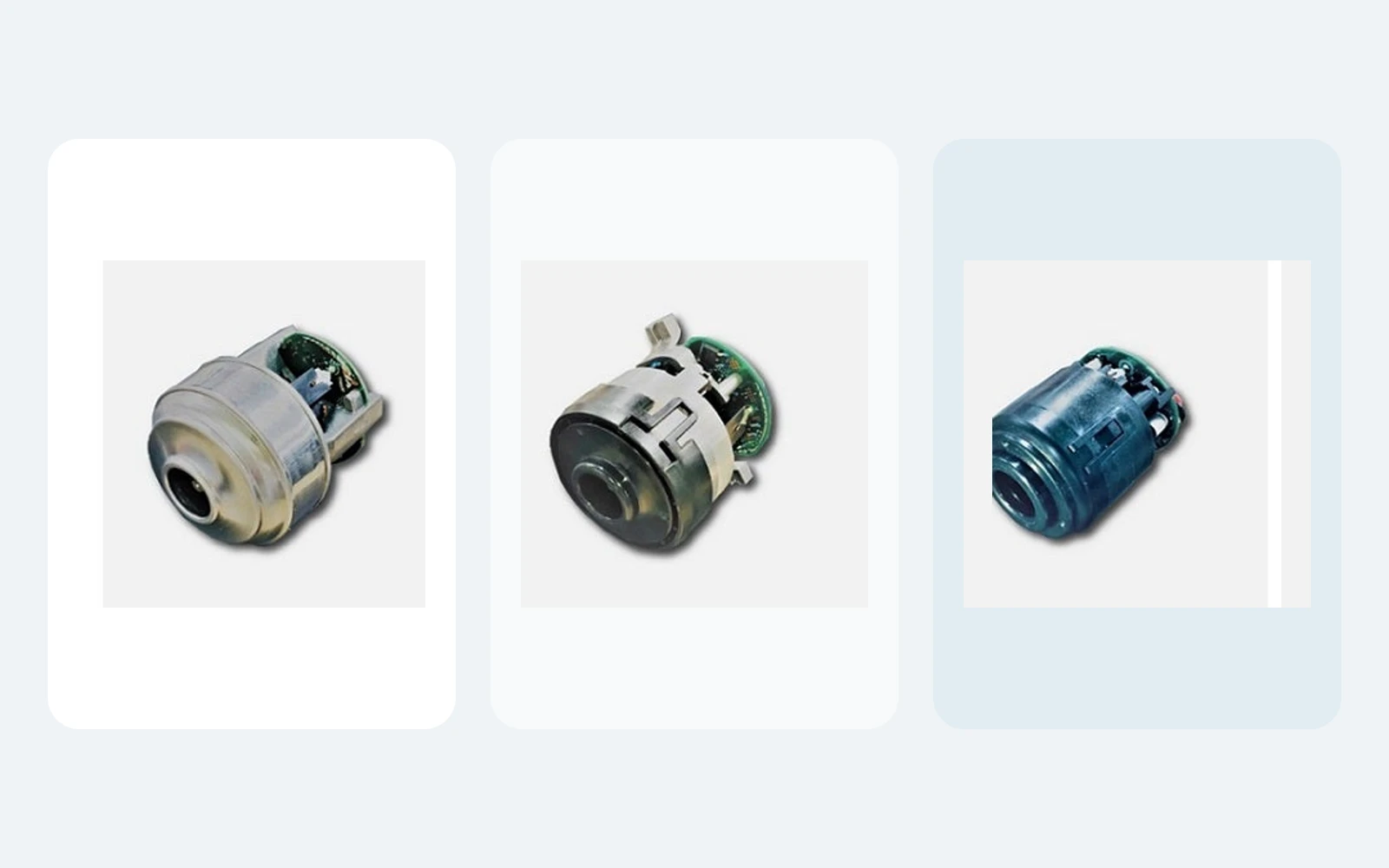

Three generations of Nidec brushless DC motors for cordless vacuum cleaners
Official technical image

WCB layout of Nidec's official V65, V55 and V45 cordless-vacuum motor lineup image. It documents one manufacturer application context, not universal fit.

How to use this visualTreat the photographed application as source context only. Verify the actual operating point, duty, envelope and approvals.

Official image source

Cordless stick and handheld vacuum

Named manufacturer product families.Sources: Nidec cordless, Domel brushless

WCB assessment

Brushless high-speed families are documented for this context, but the motor, controller, battery and fan must be qualified as one system.

Limitations
No appliance-model or cross-supplier compatibility is established.
Buyer action
Approve voltage, controller, operating point, thermal path, acoustic target and mechanical envelope together.

Household mains dry vacuum

Household or similar use within cited sources.Sources: Domel thruflow, Domel brushless, IEC 60335 2 2

WCB assessment

Both universal and selected brushless families may be relevant where the exact dry-use and regional electrical specification matches.

Limitations
The standard is an appliance scope, not a motor approval or part listing.
Buyer action
Match regional supply, cooling path, insulation, protection and approved appliance documentation.

Wet/dry vacuum

Domel product group; exact part and appliance validation remains required.Sources: Domel bypass

WCB assessment

Use only a family explicitly documented for the required wet/dry arrangement and validate the complete appliance safety design.

Limitations
A bypass label by itself is not a wet-use approval.
Buyer action
Confirm water-ingress boundary, cooling route, discharge, seals, insulation and applicable commercial or household standard.

Large commercial or utility vacuum

Sources: Johnson U9825

WCB assessment

The U9825-001 documents one large-vacuum AC blower data set; it is a reference point, not a universal commercial specification.

Limitations
Commercial wet/dry safety scope and site duty require separate validation.
Buyer action
Request the exact performance curve, duty, approval file, enclosure and service-part documentation.

Central vacuum system

Sources: Astm F2105

WCB assessment

A motor/fan family must be selected against the central system's duct resistance, cooling, duty and applicable method rather than a single peak number.

Limitations
The standard does not select a motor for a building or confirm a part.
Buyer action
Validate the complete system curve, duty cycle, enclosure, acoustic target, supply and approved part record.

Compatibility gate

Family similarity is not replacement compatibility

Physical resemblance, group ownership, generic family names, seller claims, and matching wattage do not establish compatibility.

Five-stage motor compatibility gate covering identity, electrical, mechanical, system and safety checks
WCB explanatory visual

WCB compatibility gate. A failed or undocumented field stops approval; it does not become a probable fit.

How to use this visualPass every relevant gate using current manufacturer documents before approving a substitute, service part or design change.

Diagram sourcesDomel brushless, Johnson U9825, UL integral controls, IEC 60335 2 2

01

Identity and revision

Required match
Manufacturer part number, suffix, revision, appliance model and serial range
Why it matters
A family can contain materially different voltage, fan, control and interface variants.
Required action
Use the current manufacturer parts list or service document; stop if identity is incomplete.

WCB verification action based on reviewed variant structure.Sources: Domel brushless, Johnson U9825

02

Electrical and control interface

Required match
AC/DC type, voltage, frequency, current, wiring, connector, controller signals and protection
Why it matters
Brushless designs require electronic commutation and official families span multiple supply versions.
Required action
Approve the wiring and control specification, not only the nominal wattage.

Family and standards boundary; no exact appliance fit stated.Sources: Domel brushless, UL integral controls

03

Mechanical package

Required match
Envelope, mounting pattern, orientation, shaft and fan assembly, discharge and connector clearance
Why it matters
Published families differ by diameter, discharge and construction even when broadly similar.
Required action
Compare controlled drawings and tolerances for the exact revision.

Sources: Domel bypass, Johnson U9825

04

Airflow and cooling system

Required match
Thru-flow or bypass path, fan stages, seals, duct interface, restriction range and wet/dry boundary
Why it matters
Changing restriction or cooling route changes the operating point and thermal condition.
Required action
Validate the complete appliance system curve and temperature under intended filter-loading and duty conditions.

Architecture and datasheet boundary.Sources: Domel thruflow, Domel bypass, Johnson U9825

05

Safety and protection

Required match
Insulation, grounding, thermal or electronic protection, enclosure and applicable approvals
Why it matters
A component change can invalidate appliance-level abnormal-operation or protection assumptions.
Required action
Have qualified engineering and compliance personnel confirm the applicable standard and certification file.

Standards applicability only; no certification claim.Sources: IEC 60335 2 2, UL integral controls

06

Performance and life validation

Required match
Operating curve, input, efficiency, speed, acoustic, vibration, duty and life-test condition
Why it matters
Single-point peak data does not reproduce an application's working restriction or field duty.
Required action
Request test data at the intended operating point and run appliance-level validation.

Test-method and U9825-001 reference.Sources: Astm F2105, Johnson U9825

Service boundary

Failure signals and required checks

Symptoms narrow inspection work; they are not a remote diagnosis or repair instruction.

No start or intermittent start

WCB inspection categories
  • Supply, connector or control mismatch
  • Protection state
  • Brush or commutation system where applicable

Safety boundaryThese are WCB inspection categories, not a remote diagnosis. Disconnect power and stored energy before authorized service.

Service actionConfirm the exact wiring, protection state and approved diagnostic procedure before condemning the motor.

WCB synthesis from published fields; exact fault cause is not disclosed by the sources.Sources: Domel brushless, Johnson U9825, UL integral controls

Low airflow or weak suction

WCB inspection categories
  • System restriction or leakage
  • Operating-point mismatch
  • Fan, seal or duct-interface issue

Safety boundaryDo not infer a motor fault from an appliance symptom without isolating the system boundary.

Service actionMeasure against the authorized method and inspect filters, ducts, seals and fan path before substitution.

WCB diagnostic framework; not a manufacturer fault tree.Sources: Astm F2105, Johnson U9825, IEC 62885 2

Thermal trip or overheating

WCB inspection categories
  • Cooling-path restriction
  • Duty or voltage outside specification
  • Protection or integration mismatch

Safety boundaryRepeated protection operation requires qualified service; bypassing thermal or electronic protection is unsafe.

Service actionVerify cooling architecture, restriction, input, duty, insulation and protection against current documentation.

WCB inspection categories derived from documented boundaries.Sources: Domel bypass, Johnson U9825, UL integral controls

Abnormal noise or vibration

WCB inspection categories
  • Fan imbalance or contact
  • Bearing or mounting condition
  • Operation outside the intended point

Safety boundaryStop operation if contact, overheating or electrical hazard is suspected; do not disassemble outside authorized service.

Service actionInspect the approved mount, fan path and operating point and compare with manufacturer acoustic and vibration limits when available.

WCB inspection categories; no exact cause is claimed.Sources: Domel brushless, Nidec cordless

Representative, not exhaustive

Official representative product families

These rows document manufacturer-published families. They do not establish a customer, OEM, factory or compatibility relationship.

Representative official component families
ManufacturerFamilyArchitectureDeclared applicationDistinguishing specificationsScope
DomelSeries 758Brushless thru-flowLow-voltage and high-efficiency vacuum applications100 mm · 12–48 V · up to 1200 WDomel global English product page
DomelSeries 759Brushless bypassLow-voltage and high-efficiency vacuum applications115 mm · 12–48 V · up to 1200 WDomel global English product page
DomelSeries 729Brushless bypassBattery and corded vacuum applications130 mm · 12–230 V · up to 1200 WDomel global English product page
NidecType V45Brushless DC cordless-vacuum motorLight cordless-vacuum modeRated power output 100 WNidec 2021 lineup in official case study
NidecType V55Brushless DC cordless-vacuum motorStandard stick-type vacuum modeRated power output 150 WNidec 2021 lineup in official case study
NidecType V65Brushless DC cordless-vacuum motorHigher-output cordless-vacuum modeRated power output 250 WNidec 2021 lineup in official case study
Johnson ElectricU9825-001AC thru-flow blowerLarge vacuum cleaners120 V AC · 128.4 × 178.1 mm · Manufacturer publishes open, orifice and sealed dataJohnson Electric metric datasheet

WCB decision support

Procurement decision matrix

WCB assessment

New vacuum product design

Verify
Target system curve, input architecture, envelope, control, thermal path, duty, noise and compliance
Comparison trap
Selecting from peak wattage or rpm
Assessment
Shortlist by documented operating boundary, then validate the complete appliance.
Limitations
Public family pages do not replace supplier-controlled drawings or qualification data.
Buyer action
Issue an engineering specification and request controlled drawings, curves, life data, compliance records and samples.

WCB procurement method, not a supplier recommendation.Sources: Domel brushless, Nidec cordless, Johnson U9825, IEC 60335 2 2

WCB assessment

Approved service replacement

Verify
Exact approved part number, revision, model and serial range
Comparison trap
Treating similar dimensions and wattage as equivalent
Assessment
Use only current manufacturer service documentation or a formally approved engineering substitution.
Limitations
This profile cannot approve a replacement part.
Buyer action
Obtain the current parts list or written manufacturer confirmation before installation.

Sources: Domel brushless, Johnson U9825

WCB assessment

Supplier qualification

Verify
Controlled specifications, traceability, change control, test method and quality evidence
Comparison trap
Accepting a brochure headline as production control
Assessment
Qualify the supplier process and exact motor configuration, not only the product family.
Limitations
No supplier audit or quality ranking is provided here.
Buyer action
Define approval samples, incoming controls, change notification and periodic performance checks.

Domel claim plus WCB procurement synthesis.Sources: Domel brushless, Astm F2105

WCB assessment

Cross-region sourcing

Verify
Supply voltage, frequency, insulation, approvals, corded/battery architecture and appliance certification impact
Comparison trap
Assuming a family name is electrically identical worldwide
Assessment
Treat each regional electrical and compliance configuration as a separate approval item.
Limitations
Market access requirements depend on jurisdiction and final appliance.
Buyer action
Confirm regional configuration and certification file with qualified compliance personnel.

Standards boundary; no legal market-access conclusion.Sources: Domel brushless, IEC 60335 2 2, UL integral controls

Engineering validation

Checks before approval or substitution

01

System operating curve

Airflow and pressure move together with restriction; open and sealed values are endpoints, not one working condition.

Required actionObtain the full curve and test in the actual duct, filter and nozzle system.

Sources: Johnson U9825, Astm F2105

02

Electrical and control integration

Supply and commutation architecture differ across AC universal, low-voltage BLDC and corded EC families.

Required actionApprove wiring, controller, firmware or signals, protection and EMC configuration for the exact variant.

Sources: Domel brushless, Nidec cordless

03

Thermal and cooling path

Thru-flow and bypass arrangements place cooling air in different system relationships.

Required actionValidate temperatures at clean and loaded-filter conditions across the intended duty cycle.

Sources: Domel thruflow, Domel bypass

04

Mechanical and sealing interface

Mount, fan, discharge, seals and connector clearance affect air leakage, vibration and assembly safety.

Required actionUse controlled drawings and tolerance analysis; validate sealing and vibration in the final assembly.

Manufacturer family and datasheet boundaries.Sources: Domel bypass, Johnson U9825

05

Safety and appliance compliance

A motor is integrated into an appliance with abnormal-operation, insulation, protection and use-scope requirements.

Required actionHave qualified compliance personnel assess the component change against the current appliance file and applicable standards.

Applicability reference only; not a certification statement.Sources: IEC 60335 2 2, UL integral controls

Standards boundary

Safety and performance references

Show 4 safety and performance references

ASTM F2105-21

JurisdictionTest method published by ASTM International

Version2021

ApplicabilityMeasures suction, airflow, air power, maximum air power and input power for series-universal vacuum-cleaner motor/fan systems under specified conditions; it does not approve a replacement part.

Series-universal motor/fan systems in the standard.Sources: Astm F2105

IEC 60335-2-2

JurisdictionInternational appliance safety standard

Version2026

ApplicabilityCovers electric vacuum cleaners and water-suction cleaning appliances within the stated household and similar-use voltage scope; applicability is to the appliance, not automatic motor certification.

Sources: IEC 60335 2 2

IEC 62885-2

JurisdictionInternational vacuum performance standard

Version2026

ApplicabilityCovers performance measurement of mains-operated and cordless dry vacuum cleaners for household or similar use; it is a whole-appliance method, not a motor interchangeability rule.

Sources: IEC 62885 2

UL 1004 family

JurisdictionNorth American motor safety standards referenced by UL Solutions

ApplicabilityUL identifies general rotating-machine, thermally protected and electronically protected motor standards; the applicable evaluation depends on the exact motor and control design.

Standards overview only; no listed or recognized status is claimed for a profile family.Sources: UL integral controls

Technical developments

Documented changes affecting design or procurement

Show 3 documented changes

  1. IEC publishes the third edition of IEC 62885-2

    The 2026 edition expands its stated scope to mains-operated and cordless dry vacuum cleaners and revises air-data and test-material organization.

    Whole-appliance performance standard, not motor compatibility.Sources: IEC 62885 2

  2. AMETEK combines DFS and Bison under the Bison business

    AMETEK's announcement identifies Lamb vacuum motors among the combined business's product brands, preserving a current source trail for the historic Lamb name without adding a representative-family row lacking current public specifications.

    Corporate source identity only; no customer, OEM or exact product relationship.Sources: Ametek bison

  3. Nidec documents a third-generation cordless vacuum motor lineup

    Nidec states that its third generation used a resin housing and identifies V45, V55 and V65 modes with rated power outputs.

    Nidec case study; the page gives the year but not a precise release day.Sources: Nidec cordless

Audit trail

Primary and technical sources

Last material modification 2026-08-09 · Last verified 2026-08-09

Show all 10 sources
  1. manufacturer

    Brushless vacuum motors

    Domel

    Accessed 2026-08-09

    Open source
  2. manufacturer

    Thru-flow motors for dry applications

    Domel

    Accessed 2026-08-09

    Open source
  3. manufacturer

    Bypass motors for dry and wet applications

    Domel

    Accessed 2026-08-09

    Open source
  4. manufacturer

    Compact and light brushless DC motor for cordless vacuum cleaners

    Nidec Corporation

    Accessed 2026-08-09

    Open source
  5. datasheet

    U9825-001 AC blower metric datasheet

    Johnson Electric

    Accessed 2026-08-09

    Open source
  6. standard

    ASTM F2105-21: Measuring Air Performance Characteristics of Vacuum Cleaner Motor/Fan Systems

    ASTM International

    Accessed 2026-08-09

    Open source
  7. standard

    IEC 60335-2-2:2026 CMV

    International Electrotechnical Commission

    Accessed 2026-08-09

    Open source
  8. standard

    IEC 62885-2:2026

    International Electrotechnical Commission

    Accessed 2026-08-09

    Open source
  9. technical

    Testing and Certification of Motors with Integral Controllers

    UL Solutions

    Accessed 2026-08-09

    Open source
  10. manufacturer

    Newly Formed Bison Combines AMETEK Dynamic Fluid Solutions and Bison Gear

    AMETEK

    Accessed 2026-08-09

    Open source
