Vacuum Cleaner Filter

HEPA wording, color and shape are not enough—the exact part, filter position, seal and test boundary must match.

This profile separates filter function, filtration claims, airflow restrictions and model-specific compatibility so buyers can compare evidence without converting a class label into universal fit.

Included

Pre-motor, main, cartridge, flat-pleated and exhaust filter roles
Official particle-class and efficiency claims with their stated test boundary
Part-number, model, seal, dimension and wet/dry checks

Excluded

Dust bags as universal substitutes for filters
Health or medical outcome claims
Unverified aftermarket interchangeability

First published 2026-08-09 · Last verified 2026-08-09

Physical resemblance, matching wattage, matching voltage, a generic family name or a seller claim does not establish compatibility. Verify the current manufacturer part number and revision, machine model and serial scope, electrical and control specification, mechanical and fluid or airflow interfaces, protection requirements and approved service documentation.

Kärcher vacuum filter family arranged across a dark background — Official Kärcher filter overview image presented on a WCB canvas; product-family imagery does not establish compatibility. Official image source

Vacuum Cleaner Filter key facts
Fact	Technical reference	Scope boundary
System role	A vacuum may use multiple filters in different positions	Miele named system only.
Claim boundary	HEPA class and percentage claims require the stated method and product configuration	Named manufacturer products and their stated tests only.
Compatibility boundary	Part number and appliance model remain primary identifiers	Named official spare-parts catalogues only.

Functional boundary

Where the component sits in the larger system

This WCB flow describes documented functions, not one universal product construction.

01
Pre-separation
Cyclones, bags or upstream stages remove part of the load before fine filtration.
EvidenceMiele describes the bag as one stage in a multi-stage system.
ScopeMiele AirClean description.
Verified2026-08-09
Sourcesmiele-guide
02
Motor protection
An upstream filter reduces particle exposure at the motor inlet.
EvidenceMiele explicitly identifies a motor-protection filter within its system.
ScopeMiele system only.
Verified2026-08-09
Sourcesmiele-guide
03
Main or cartridge filtration
Pleated or cartridge media separates particles while maintaining the designed airflow path.
EvidenceKärcher separates cartridge and flat-pleated families by application and material.
ScopeKärcher portfolio taxonomy.
Verified2026-08-09
Sourceskarcher-filter
04
Exhaust filtration
A downstream filter addresses particles remaining in discharged air within the stated class and seal boundary.
EvidenceDyson, Miele and Nilfisk publish model-specific post-motor or HEPA accessories.
ScopeNamed official product ranges.
Verified2026-08-09
Sourcesdyson-v15, miele-catalog, nilfisk-accessories

Architecture families

Different component architectures solve different constraints

No architecture is a universal winner, and a family label is not a replacement-part specification.

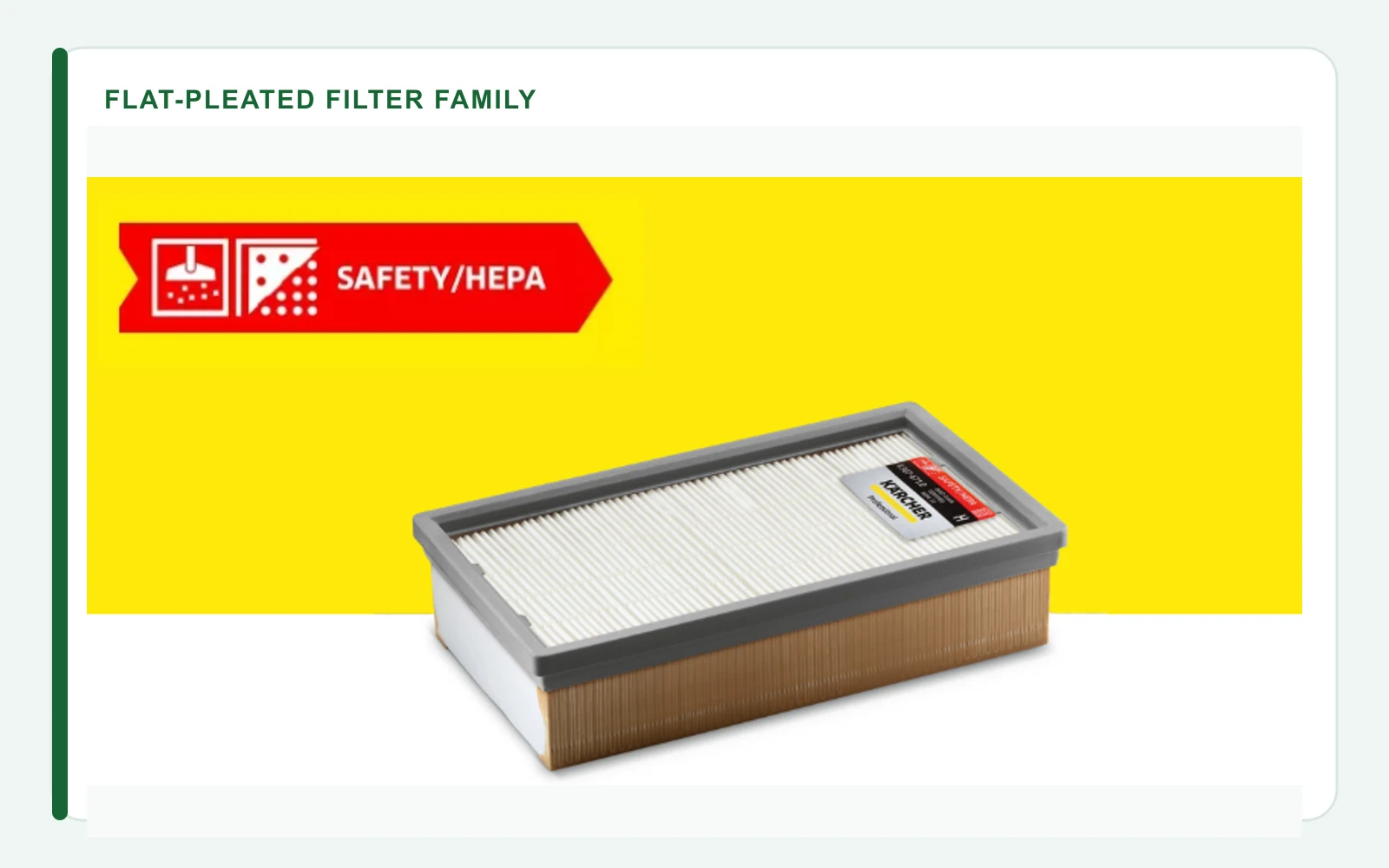

Kärcher Safety and HEPA flat-pleated filters — Official technical image
Official Kärcher Safety/HEPA flat-pleated filter image on a WCB canvas, showing one manufacturer's family boundaries.
**How to use this visual**Use the photographed family only to understand documented construction context; do not infer exact product fit.
Official image source

Cartridge or cylindrical filter

Principle: Pleated media is formed around a supporting core and sealed into a model-specific frame.
Application boundary: Common in wet/dry and cartridge-based vacuum designs.
Benefits: Large media area in a compact envelope
Replaceable assembly
Limitations: Dimensions and end seals vary
Wet-use permission is product-specific
Buyer check: Match exact accessory number, media, dimensions, seals and wet/dry declaration.

EvidenceKärcher publishes cartridge and wet/dry product groups with distinct uses.

ScopeKärcher official portfolio.

Verified2026-08-09

Sourceskarcher-filter

Flat-pleated filter

Principle: Pleated media is packaged in a flat frame or cassette.

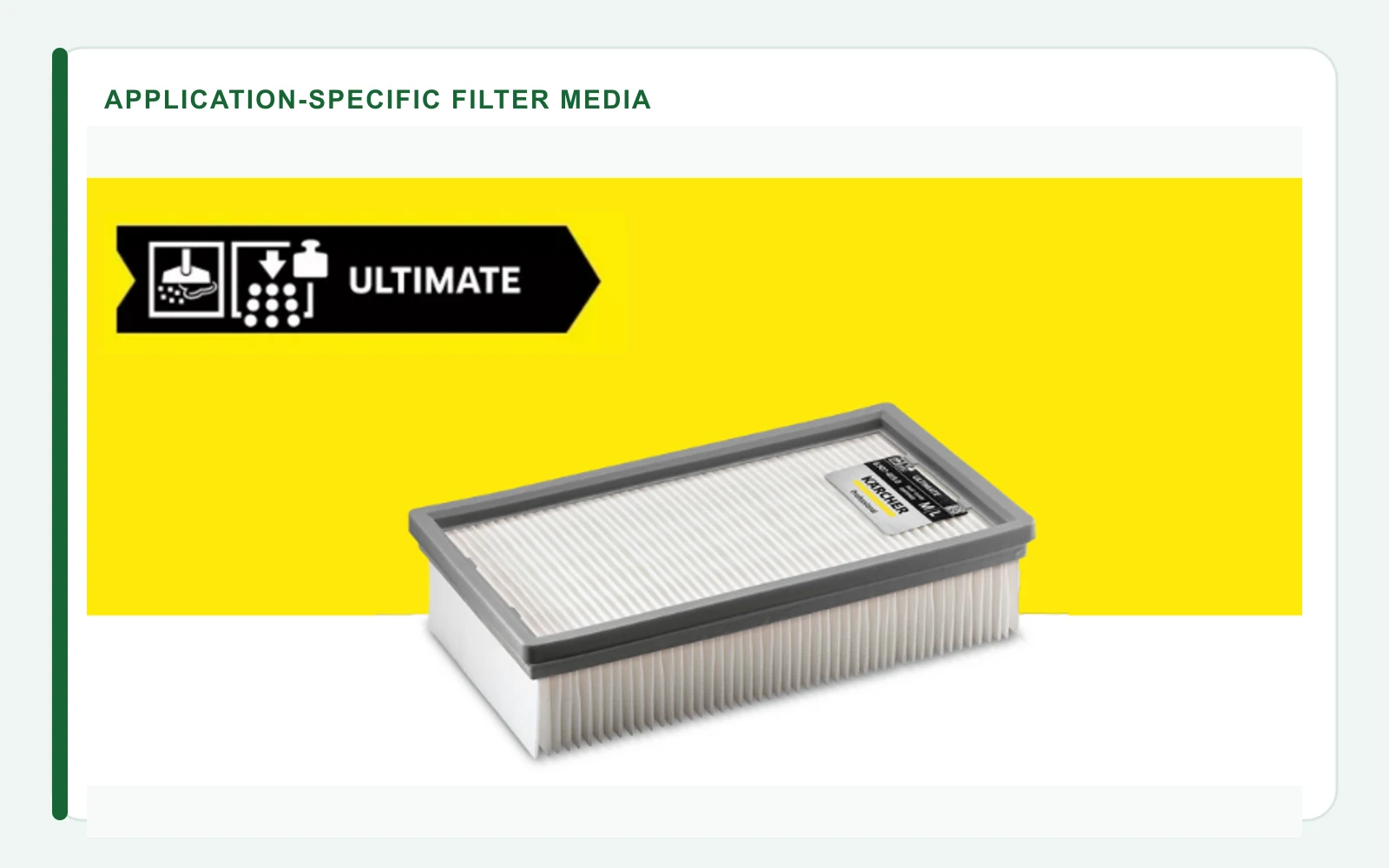

Application boundary: Kärcher separates Safety/HEPA, Ultimate, Wet & Dry and Dry families.
Benefits: Compact cassette geometry
Application-specific media families
Limitations: Color does not prove media or fit
Class claims are configuration-specific
Buyer check: Verify part number, dust class, media, filter position and machine list.

EvidenceKärcher official filter overview separates four flat-pleated categories.

ScopeKärcher taxonomy only.

Verified2026-08-09

Sourceskarcher-filter

Pre-motor and exhaust pair

Principle: Separate upstream and downstream filters protect the motor and manage discharged particles.
Application boundary: Cordless and canister systems may use distinct filter positions and part numbers.
Benefits: Different functions can be optimized separately
Service intervals can be documented by position
Limitations: Filters may look similar while serving different positions
Omitting one stage changes system performance
Buyer check: Confirm every required filter position and exact appliance model.

EvidenceDyson and Miele publish model-specific filter and system guidance.

ScopeNamed Dyson and Miele systems.

Verified2026-08-09

Sourcesdyson-v15, miele-guide

Specification dictionary

What component specifications do—and do not—mean

Vacuum Cleaner Filter specification dictionary
Specification	Purchasing meaning	Reporting boundary	Comparison caution
Filter position	Defines whether the part protects the motor, performs main separation or filters exhaust	Use the manufacturer's service terminology	Do not substitute an exhaust filter for a pre-motor part.
Filtration class or efficiency	Describes a result under a named standard or manufacturer method	Class, particle size, percentage, method and configuration must stay together	Do not compare percentages with missing test boundaries.
Pressure drop	Influences airflow, motor load and service indicators	Report at the stated airflow and loading condition	Higher filtration wording does not automatically mean better system performance.
Media and wet/dry use	Controls moisture tolerance, cleaning method and application	Paper, fleece, glass fibre and other media need exact manufacturer guidance	Do not wash or wet a filter unless explicitly permitted.
Seal and dimensions	Define bypass leakage and physical installation	Frame, gasket, latch and orientation are compatibility fields	A small seal gap can invalidate a filtration claim.
Service interval	Controls maintenance and replacement planning	Wash, dry, replace and alarm instructions are model-specific	Do not reuse until the manufacturer-stated dry condition is met.
