Pressure Washer Unloader Valve

An unloader is the primary pressure-control device—not the system's only safety relief.

This profile compares trapped-pressure, pressure-sensitive and specialty unloaders using official flow, pressure, temperature and plumbing evidence.

Included

Pressure-sensitive and flow-actuated unloader valves
Integral, bolt-on and externally plumbed configurations
Pressure, flow, temperature, port and bypass checks

Excluded

Secondary relief or pop-off valves
Simple pressure switches
Field pressure adjustment without a gauge and manufacturer procedure

First published 2026-08-12 · Last verified 2026-08-12

Physical resemblance, matching wattage, matching voltage, a generic family name or a seller claim does not establish compatibility. Verify the current manufacturer part number and revision, machine model and serial scope, mechanical, electrical and fluid interfaces, rated operating envelope, protection requirements and approved service documentation.

General Pump PULSAR4LP trapped-pressure unloader valve — Official General Pump PULSAR4LP image on a WCB canvas; pressure, flow, temperature and port limits remain product-specific. Official image source

Pressure Washer Unloader Valve key facts
Fact	Technical reference	Scope boundary
Primary control role	Official guidance distinguishes an unloader from a secondary relief or pop-off device	Named official product, model, market and document edition only; verify the current revision before procurement.
System operating point	Unloader selection must cover the desired pump flow and system pressure	Named official product, model, market and document edition only; verify the current revision before procurement.
Plumbing boundary	Inlet, outlet and bypass ports and the trapped/flow-actuated behavior define installation	Named official product, model, market and document edition only; verify the current revision before procurement.

Functional boundary

Where the component sits in the larger system

This WCB flow describes documented functions, not one universal product construction.

01
Pressure setting
The spring, piston and valve geometry establish the primary system-pressure set point.
EvidenceThe cited official source supports this statement within its named product or document scope.
ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.
Verified2026-08-12
Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar
02
Demand response
The valve reacts when the trigger gun closes or downstream flow changes.
EvidenceThe cited official source supports this statement within its named product or document scope.
ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.
Verified2026-08-12
Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar
03
Bypass routing
Unneeded pump flow returns through an internal or external bypass path.
EvidenceThe cited official source supports this statement within its named product or document scope.
ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.
Verified2026-08-12
Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar
04
Pump-load management
Correct unloading reduces pump or drive load during no-demand operation.
EvidenceThe cited official source supports this statement within its named product or document scope.
ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.
Verified2026-08-12
Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Architecture families

Different component architectures solve different constraints

No architecture is a universal winner, and a family label is not a replacement-part specification.

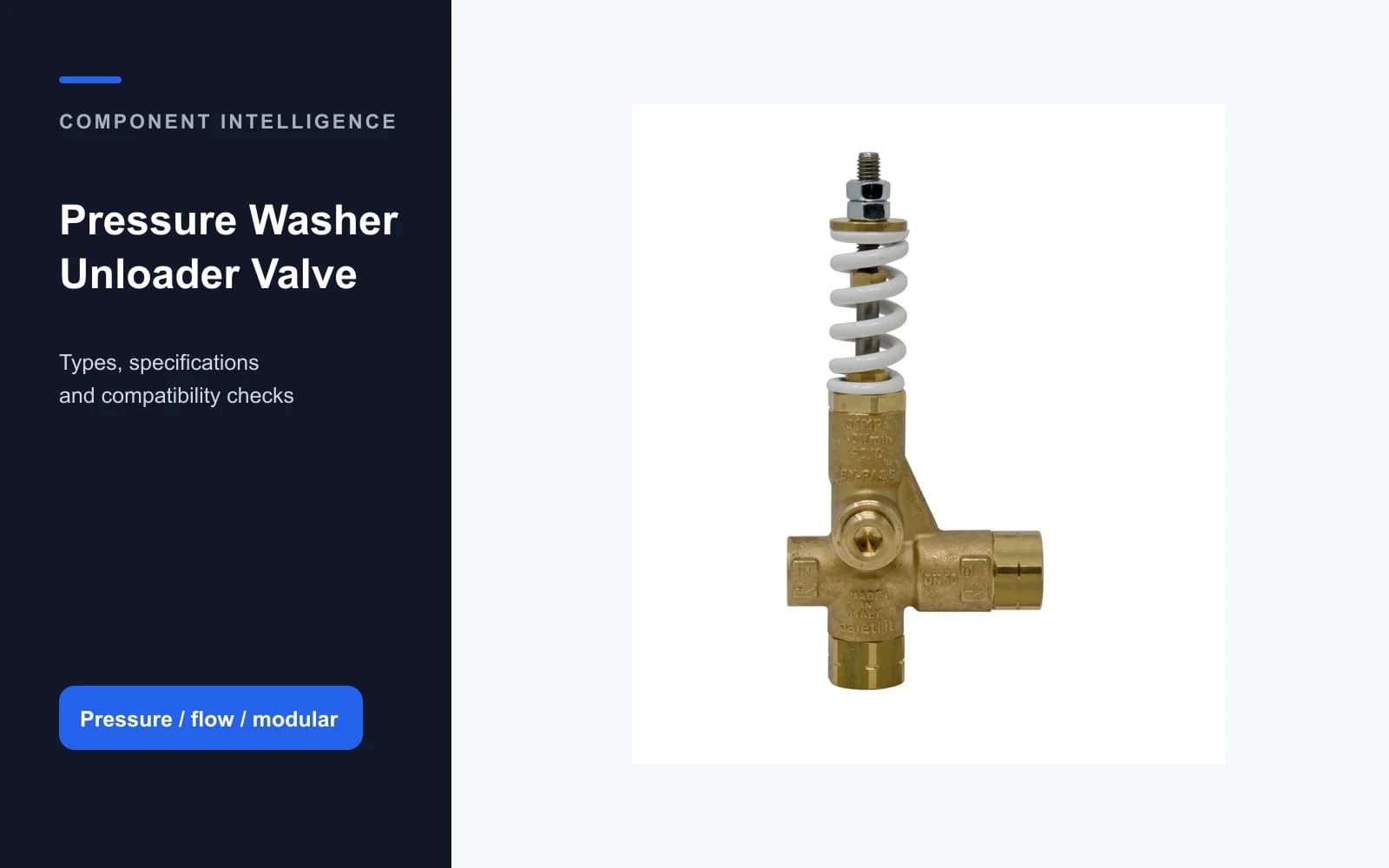

General Pump PULSAR4LP unloader valve — Official technical image
Official General Pump product image showing a manually adjustable trapped-pressure unloader architecture.
**How to use this visual**Use the photographed family only to understand documented construction context; do not infer exact product fit.
Official image source

Trapped-pressure unloader

Principle: Downstream pressure remains trapped after the trigger closes while pump flow moves to bypass.
Application boundary: Single- or named multi-gun system within product ratings
Benefits: Fast pressure availability and established architecture
Limitations: Trigger release can create hose pressure and kickback
Buyer check: Confirm the exact part number, installed system, interface and documented operating envelope.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Flow-actuated unloader

Principle: A flow change shifts the valve and typically releases downstream pressure.
Application boundary: System designed for the specific flow-actuated valve
Benefits: Can reduce trapped downstream pressure
Limitations: Minimum flow and plumbing behavior are system-specific
Buyer check: Confirm the exact part number, installed system, interface and documented operating envelope.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Integral or modular unloader

Principle: A compact valve bolts to a matching pump manifold and may include an injector or switch.
Application boundary: Named pump series and flow-through screw geometry
Benefits: Reduced plumbing and leak paths
Limitations: Manifold, screw, port and injector variants are proprietary
Buyer check: Confirm the exact part number, installed system, interface and documented operating envelope.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Specification dictionary

What component specifications do—and do not—mean

Pressure Washer Unloader Valve specification dictionary
Specification	Purchasing meaning	Reporting boundary	Comparison caution
Flow range	Defines stable valve operation and bypass capacity	Use combined nozzle flow at the operating point	Maximum pressure alone cannot qualify an unloader.
Pressure range	Defines adjustment and component load limits	Distinguish rated, maximum and set pressure	Never use the adjustment screw as a substitute for nozzle sizing.
Maximum temperature	Controls seals, spring and body service	Use actual fluid temperature at the valve	Hot-water systems require the documented installation position.
Ports and bypass	Define plumbing, sealing and recirculation	Record thread standard, gender, count and flow direction	3/8-inch labels do not distinguish NPT from BSP.

Pressure Washer Unloader Valve performance reporting boundary diagram — WCB explanatory visual
WCB reporting map: compare ratings only inside the same documented part, condition, unit and machine scope.
**How to use this visual**Keep every reported value inside its stated unit, operating point, test method and product scope.
**Diagram sources**cat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar, general-zh2820

Flow range evidence

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Pressure range evidence

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Maximum temperature evidence

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Ports and bypass evidence

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Evidence + WCB interpretation

Application matrix

Official application language narrows the review; it does not prove exact product fit.

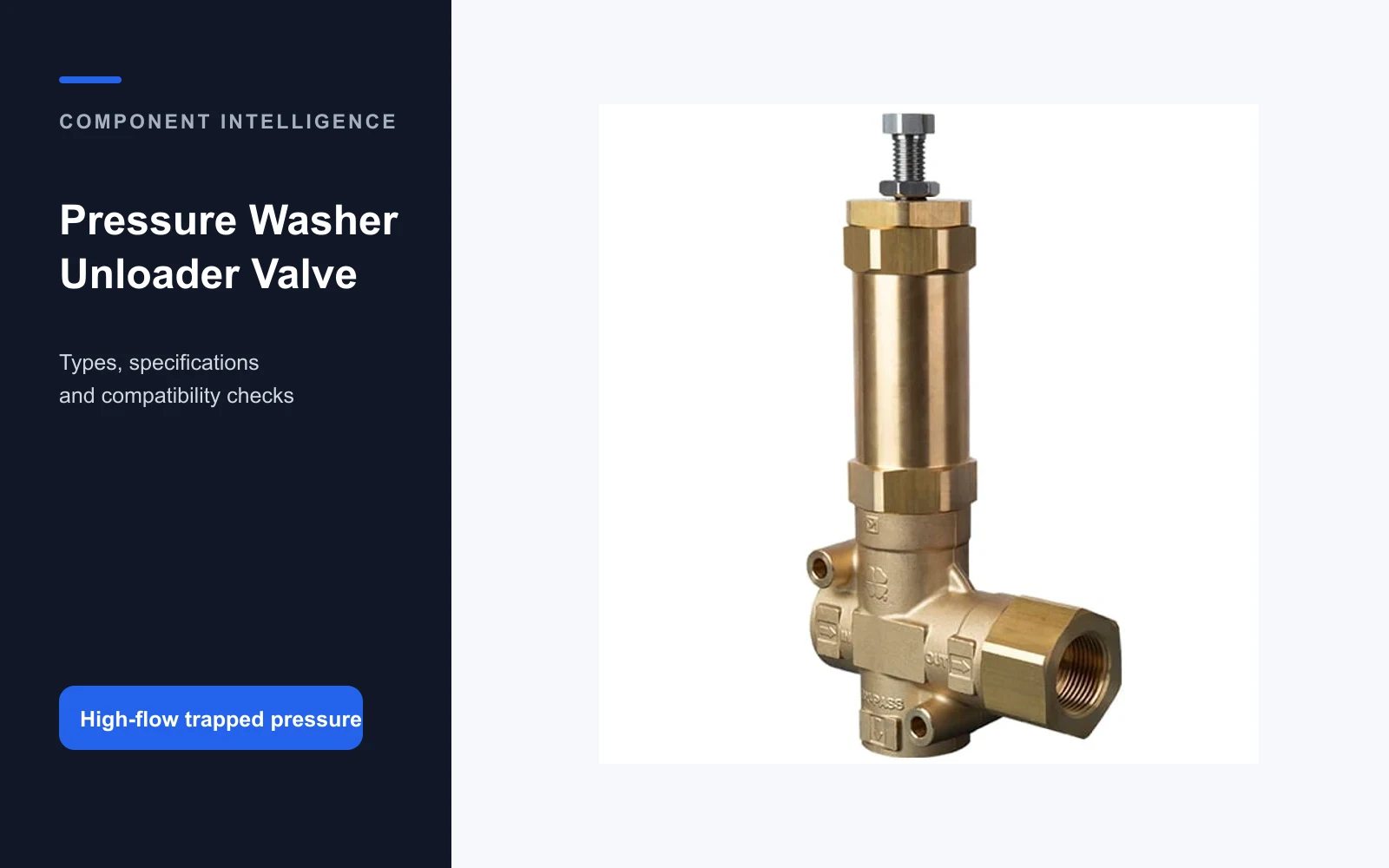

General Pump ZH2820 high-flow unloader valve — Official technical image
Official General Pump ZH2820 image on a WCB canvas; its high-flow industrial ports and calibration procedure are not interchangeable with compact unloaders.
**How to use this visual**Treat the photographed application as source context only. Verify the actual operating point, duty, envelope and approvals.
Official image source

Consumer trigger-gun system

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

WCB assessment

Match pump flow, nozzle, compact unloader, bypass path and secondary relief.

Basis: Official architecture and application statements from the cited sources.
Limitations: No exact machine or surface suitability is established outside the cited scope.
Buyer action: Approve the exact part, installed system and operating procedure.

Commercial hot-water washer

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

WCB assessment

Confirm valve temperature, upstream/downstream heater position and seal system.

Basis: Official architecture and application statements from the cited sources.
Limitations: No exact machine or surface suitability is established outside the cited scope.
Buyer action: Approve the exact part, installed system and operating procedure.

Multi-gun or industrial system

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

WCB assessment

Use manufacturer engineering guidance for combined flow, regulation and pressure relief.

Basis: Official architecture and application statements from the cited sources.
Limitations: No exact machine or surface suitability is established outside the cited scope.
Buyer action: Approve the exact part, installed system and operating procedure.

Compatibility gate

Family similarity is not replacement compatibility

Physical resemblance, group ownership, generic family names, seller claims, and matching wattage do not establish compatibility.

Pressure Washer Unloader Valve compatibility approval gate — WCB explanatory visual
WCB compatibility gate: stop approval when identity, interface, rating or source scope remains undocumented.
**How to use this visual**Pass every relevant gate using current manufacturer documents before approving a substitute, service part or design change.
**Diagram sources**cat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar, general-zh2820

Actuation and system layout

Required match: Pressure- or flow-actuated design, gun type and pump count
Why it matters: The wrong response mode can cause cycling or trapped pressure.
Required action: Record manufacturer evidence for every required field before approval.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Operating envelope

Required match: Flow, working/set pressure, maximum pressure and temperature
Why it matters: A valve must satisfy all limits simultaneously.
Required action: Record manufacturer evidence for every required field before approval.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Hydraulic interfaces

Required match: Inlet, outlet, bypass, gauge port, injector and flow direction
Why it matters: Wrong threads or port routing can leak or block bypass.
Required action: Record manufacturer evidence for every required field before approval.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Safety controls

Required match: Secondary relief device, gauge, thermal protection and adjustment procedure
Why it matters: The unloader is not the sole overpressure safeguard.
Required action: Record manufacturer evidence for every required field before approval.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Service boundary

Failure signals and required checks

Symptoms narrow inspection work; they are not a remote diagnosis or repair instruction.

Pressure spikes or gun kickback

WCB inspection categories

Incorrect adjustment or trapped-pressure behavior
Wrong nozzle or sticking valve

Safety boundaryStop operation and depressurize before service.

Service actionUse the current manufacturer inspection, maintenance and replacement procedure.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Pump overheats in bypass

WCB inspection categories

Restricted bypass or excessive recirculation time
Missing thermal protection

Safety boundaryDo not leave the system recirculating beyond the manufacturer's limit.

Service actionUse the current manufacturer inspection, maintenance and replacement procedure.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Pressure cycles or will not build

WCB inspection categories

Valve sized outside its flow range
Debris, worn seals or incorrect plumbing

Safety boundaryUse a calibrated gauge and approved diagnostic procedure.

Service actionUse the current manufacturer inspection, maintenance and replacement procedure.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Representative, not exhaustive

Official representative product families

These rows document manufacturer-published families. They do not establish a customer, OEM, factory or compatibility relationship.

Representative official component families
Manufacturer	Family	Architecture	Declared application	Distinguishing specifications	Scope
Cat Pumps	7500S	Pressure-sensitive regulating unloader	0.5–6.0 gpm and named pressure/port scope	Official family identityNamed architecture or operating envelope	Cat Pumps data sheet
Cat Pumps	7600S	Pressure-sensitive regulating unloader	2.0–5.0 gpm and named pressure/port scope	Official family identityNamed architecture or operating envelope	Cat Pumps data sheet
Cat Pumps	7860/7861 modular family	Direct-mount modular unloader	Named Cat Pumps 66DX pump and flow range	Official family identityNamed architecture or operating envelope	Cat Pumps data sheet
General Pump	PULSAR4LP	Trapped-pressure unloader	10.5 gpm, named pressure/temperature/ports	Official family identityNamed architecture or operating envelope	General Pump US
General Pump	ZH2820	High-flow trapped-pressure unloader	Up to 52.8 gpm and named industrial scope	Official family identityNamed architecture or operating envelope	General Pump data sheet
AR North America	VRT3-250EZ	Adjustable brass unloader with easy-start feature	10.5 gpm, 3650 psi named scope	Official family identityNamed architecture or operating envelope	AR North America
AR North America	VRT3-310PS6	Unloader and pressure-switch combination	10.5 gpm, 3650 psi, hot-water control scope	Official family identityNamed architecture or operating envelope	AR North America

WCB decision support

Procurement decision matrix

WCB assessment

OEM or approved service replacement

Verify: Exact part identity, revision and installed system
Comparison trap: Treating a family label as an exact fit
Assessment: Requires application-specific verification.
Basis: Official part and model scope.
Limitations: No fit is established outside the named source scope.
Buyer action: Require current manufacturer cross-reference or approved-parts evidence.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

WCB assessment

Alternative sourcing qualification

Verify: Geometry, materials, interfaces, ratings and validation plan
Comparison trap: Approving by photo, nominal size or one matching rating
Assessment: Requires application-specific verification.
Basis: Multiple official families show different architecture and limits.
Limitations: Public sources do not qualify an unlisted substitute.
Buyer action: Run documented engineering, safety and service validation before approval.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

WCB assessment

Application selection

Verify: Machine, surface, duty and operating condition
Comparison trap: Comparing headline performance outside its test boundary
Assessment: Requires application-specific verification.
Basis: Official application and technical documents.
Limitations: Field results vary with the complete system and procedure.
Buyer action: Approve the complete operating specification and acceptance test.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Engineering validation

Checks before approval or substitution

Actuation and system layout

The wrong response mode can cause cycling or trapped pressure.

Required actionFreeze the approved value, tolerance, evidence URL and revision in the procurement specification.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Operating envelope

A valve must satisfy all limits simultaneously.

Required actionFreeze the approved value, tolerance, evidence URL and revision in the procurement specification.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Hydraulic interfaces

Wrong threads or port routing can leak or block bypass.

Required actionFreeze the approved value, tolerance, evidence URL and revision in the procurement specification.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Safety controls

The unloader is not the sole overpressure safeguard.

Required actionFreeze the approved value, tolerance, evidence URL and revision in the procurement specification.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcescat-7860, cat-7600s, cat-7500s, cat-faq, general-pulsar

Standards boundary

Safety and performance references

IEC 60335-2-79

JurisdictionInternational

Version2021

ApplicabilitySafety context for high-pressure cleaners within the standard scope; not an unloader compatibility or certification claim.

EvidenceThe cited official source supports this statement within its named product or document scope.

ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.

Verified2026-08-12

Sourcesiec-60335-2-79

Technical developments

Documented changes affecting design or procurement

2026-08-12
Current official ranges retain distinct modular, trapped-pressure and switch-equipped architectures
Reviewed Cat Pumps, General Pump and AR North America sources publish materially different flow, pressure, ports and control scope.
EvidenceThe cited official source supports this statement within its named product or document scope.
ScopeNamed official product, model, market and document edition only; verify the current revision before procurement.
Verified2026-08-12
Sourcescat-7860, general-pulsar, ar-vrt3-ps

Audit trail

Primary and technical sources

Last material modification 2026-08-12 · Last verified 2026-08-12

datasheet
Cat Pumps modular pressure-sensitive unloader data sheet
Cat Pumps
Accessed 2026-08-12
Open source
datasheet
Cat Pumps 7600S pressure-sensitive unloader data sheet
Cat Pumps
Accessed 2026-08-12
Open source
datasheet
Cat Pumps 7500S pressure-sensitive unloader data sheet
Cat Pumps
Accessed 2026-08-12
Open source
technical
Cat Pumps regulator and unloader guidance
Cat Pumps
Accessed 2026-08-12
Open source
manufacturer
PULSAR4LP trapped-pressure unloader
General Pump
Accessed 2026-08-12
Open source
datasheet
ZH2820 trapped-pressure unloader data sheet
General Pump
Accessed 2026-08-12
Open source
technical
General Pump pressure-washer system FAQ
General Pump
Accessed 2026-08-12
Open source
manufacturer
VRT3-250EZ unloader
AR North America
Accessed 2026-08-12
Open source
manufacturer
VRT3-310PS6 unloader with pressure switch
AR North America
Accessed 2026-08-12
Open source
standard
IEC 60335-2-79:2021 high-pressure cleaner safety
IEC
Accessed 2026-08-12
Open source

Pressure Washer Unloader Valve

Pressure setting

Demand response

Bypass routing

Pump-load management

Trapped-pressure unloader

Flow-actuated unloader

Integral or modular unloader

Consumer trigger-gun system

Commercial hot-water washer

Multi-gun or industrial system

Actuation and system layout

Operating envelope

Hydraulic interfaces

Safety controls

Pressure spikes or gun kickback

Pump overheats in bypass

Pressure cycles or will not build

OEM or approved service replacement

Alternative sourcing qualification

Application selection

Actuation and system layout

Operating envelope

Hydraulic interfaces

Safety controls

IEC 60335-2-79

Current official ranges retain distinct modular, trapped-pressure and switch-equipped architectures

Cat Pumps modular pressure-sensitive unloader data sheet

Cat Pumps 7600S pressure-sensitive unloader data sheet

Cat Pumps 7500S pressure-sensitive unloader data sheet

Cat Pumps regulator and unloader guidance

PULSAR4LP trapped-pressure unloader

ZH2820 trapped-pressure unloader data sheet

General Pump pressure-washer system FAQ

VRT3-250EZ unloader

VRT3-310PS6 unloader with pressure switch

IEC 60335-2-79:2021 high-pressure cleaner safety
