Hot-Water Pressure Washer

Hot-water pressure washer heating systems, temperature, pressure and buyer checks

This profile separates pump drive from heat source and explains temperature, pressure, flow, fuel or electrical demand, exhaust, scale control and rated spray-system verification.

Included
  • Mobile professional hot-water high-pressure cleaners
  • Oil-fired, electrically heated and engine-driven configurations
Excluded
  • Cold-water machines connected to an unverified external heat source
  • Separate hot-box modules, steam-only generators and vehicle wash tunnels
  • Water-jet cutting or operation above the exact machine and accessory ratings

First published 2026-08-09 · Last verified 2026-08-09

This independent category reference is not operating, surface, chemical, hygiene or safety advice. Hot pressurised water, steam, fuel, exhaust and chemicals can cause severe injury or damage. Confirm the current manual, exact configuration, utilities, ventilation, rated accessories and local rules before procurement or use.

Official equipment reference

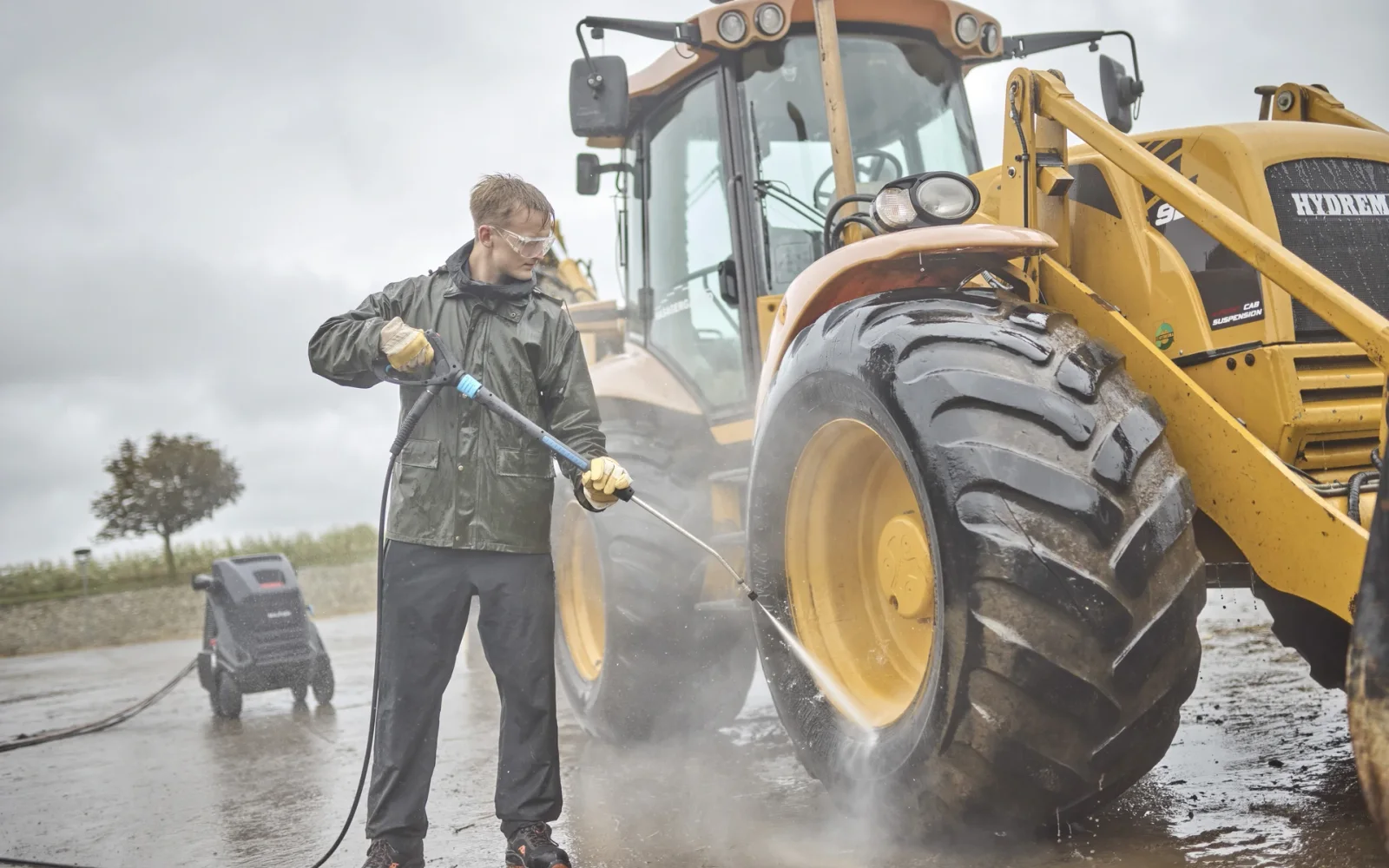

Operator using a Nilfisk hot-water pressure washer to clean heavy agricultural equipment
Official Nilfisk application image showing pressure washing of heavy agricultural equipment; the exact temperature, pressure, runoff and surface controls remain task-specific. Official image source
Hot-Water Pressure Washer key facts
FactTechnical referenceScope boundary
Category boundaryIntegrated or manufacturer-defined water-heating systemNamed products; separate aftermarket hot boxes are excluded.
Two energy pathsPump drive and water heating may use different energy sourcesExact regional configuration.
Temperature boundaryMaximum water and steam-stage temperatures are model-specificExact model, mode, flow and accessories.
Buyer verificationMatch pressure, flow, temperature, fuel or circuit, exhaust, water treatment and spray equipmentQuoted product number and actual site.

WCB explanatory visual

Hot-Water Pressure Washer working system

An original system map synthesized from reviewed operator manuals. It explains functional flow, not a universal machine architecture.

  1. 01

    Water preparation

    Inlet, filter and scale-control system

    Supplies water within cleanliness, pressure, flow and hardness limits.

    EvidenceOfficial pages identify header tanks, filters or scale-control arrangements.

    ScopeExact water supply and chemistry.

    Verified2026-08-09

    Sourceslavor-darwin, oertzen-h120

  2. 02

    Pressure generation

    Motor or engine, pump and unloader

    Raises water pressure and controls bypass or stop behaviour.

    EvidenceManufacturers publish pump-drive and control details.

    ScopeExact configuration.

    Verified2026-08-09

    Sourceskarcher-hds30, nilfisk-mh40, lavor-darwin

  3. 03

    Heat generation

    Boiler, burner or electric heater

    Raises outlet temperature within the selected mode.

    EvidenceOfficial sources distinguish diesel-fired and electric heating.

    ScopeNo heat-output equivalence is inferred.

    Verified2026-08-09

    Sourceskarcher-hds30, karcher-hdse, lavor-darwin, oertzen-h120

  4. 04

    Hot-water transfer

    Rated hose, gun, lance and nozzle

    Contains and directs pressurised hot water or approved steam-stage output.

    EvidenceOfficial product systems list model-specific spray equipment and operating modes.

    ScopeEvery component must match pressure and temperature.

    Verified2026-08-09

    Sourceskarcher-hds30, karcher-hdse, nilfisk-mh40, lavor-darwin, ipc-pwh21, oertzen-h120

  5. 05

    Runoff and shutdown

    Drainage, cooldown and pressure relief

    Controls contaminated water and leaves the system in its prescribed safe state.

    EvidenceSafety and manufacturer sources define machine controls; site drainage remains buyer-managed.

    ScopeExact task and jurisdiction.

    Verified2026-08-09

    Sourcesiec-pressure-safety, karcher-hds30, lavor-darwin

Equipment taxonomy

Main hot-water pressure washer formats

These formats describe operator relationship and task scale. None is a universal winner.

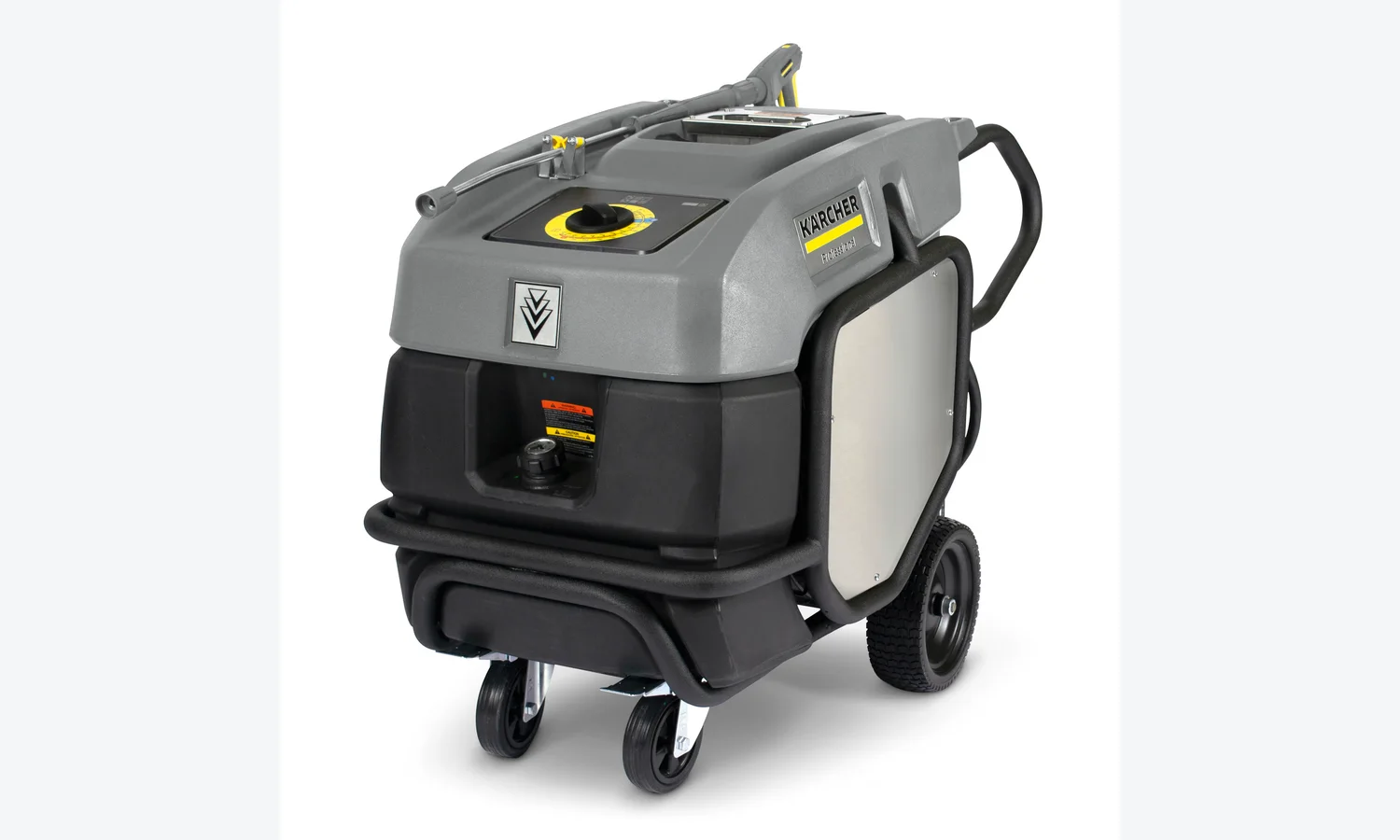

Kärcher HDS 3.0/20-4 Ea/Eg hot-water pressure washer
Official field reference

Official Kärcher product image illustrating an electric-pump, diesel-heated mobile format.

Buyer focusUse the format as a starting point, then compare the operating envelope, utilities, duty cycle, operator workflow, accessory system and the exact configured machine.

Official image source

Oil-fired mobile

Task scale
Fleet, agriculture and industrial routes
Operator
Operator moves the washer and handles fuel, hose, gun and lance
Space
Fuel storage, exhaust separation, water and electrical or engine supply
Limit
Heating fuel and pump power are separate planning loads.

EvidenceOfficial ranges show mobile oil-fired formats.

ScopeNamed models.

Verified2026-08-09

Sourceskarcher-hds30, nilfisk-mh40, lavor-darwin

Electrically heated

Task scale
Indoor or exhaust-restricted locations with suitable electrical infrastructure
Operator
Operator manages high electrical load and the spray system
Space
Voltage, phase, circuit capacity and cable routing
Limit
No-exhaust heating does not remove steam, heat or wastewater controls.

EvidenceKärcher describes an electrically heated special-class model for locations where exhaust gases are undesirable.

ScopeReviewed 24 kW configuration.

Verified2026-08-09

Sourceskarcher-hdse

Compact commercial trolley

Task scale
Smaller commercial duties and service routes
Operator
Operator works from a compact mobile chassis
Space
Water, power or fuel, drainage and service access
Limit
Compact dimensions do not establish light duty or universal indoor suitability.

EvidenceOfficial sources cover compact commercial hot-water configurations.

ScopeNamed products.

Verified2026-08-09

Sourcesipc-pwh21, oertzen-h120

Specification dictionary

What the performance metrics do—and do not—mean

Hot-Water Pressure Washer performance metric dictionary
MetricPurchasing meaningReporting boundaryComparison caution
Working pressureHydraulic pressure at the stated operating configurationWorking, maximum and unloading values may differDo not rank by maximum pressure alone.
Water flowRinsing volume and an input to heating demandMaximum, rated and effective values may use different conditionsCompare at matched pressure and temperature modes.
Outlet temperatureThermal input available for the approved soil and surfaceWater and steam stages can use different flow and pressureMaximum temperature does not prove better cleaning or surface suitability.
Heating energyFuel or electrical infrastructure and operating costBurner fuel, electric heating and pump-drive power are separateMotor input cannot be used as boiler efficiency.
Hose and nozzle envelopeSafe reach and jet formation at rated pressure and temperatureIncluded accessories vary by product codeVisual fit does not establish pressure-temperature approval.
Working pressure evidence

EvidenceOfficial sources report configuration-specific pressure.

ScopeNamed products.

Verified2026-08-09

Sourceskarcher-hds30, karcher-hdse, nilfisk-mh40, lavor-darwin, ipc-pwh21, oertzen-h120

Water flow evidence

EvidenceManufacturers publish litres per hour or gallons per minute.

ScopeSource-specific methods.

Verified2026-08-09

Sourcesnilfisk-mh40, lavor-darwin, oertzen-h120

Outlet temperature evidence

EvidenceOfficial sources publish model- and mode-specific temperature claims.

ScopeExact machine and mode.

Verified2026-08-09

Sourceskarcher-hdse, oertzen-h120, nilfisk-mh40

Heating energy evidence

EvidenceOfficial products disclose distinct drive and heating systems.

ScopeExact regional configuration.

Verified2026-08-09

Sourceskarcher-hds30, karcher-hdse, lavor-darwin

Hose and nozzle envelope evidence

EvidenceManufacturer documentation identifies model-specific spray systems.

ScopeNo cross-model compatibility.

Verified2026-08-09

Sourcesiec-pressure-safety, lavor-darwin, oertzen-h120

Evidence + WCB interpretation

Application-fit matrix

Official application evidence does not establish automatic suitability. Each row shows what still needs to be tested.

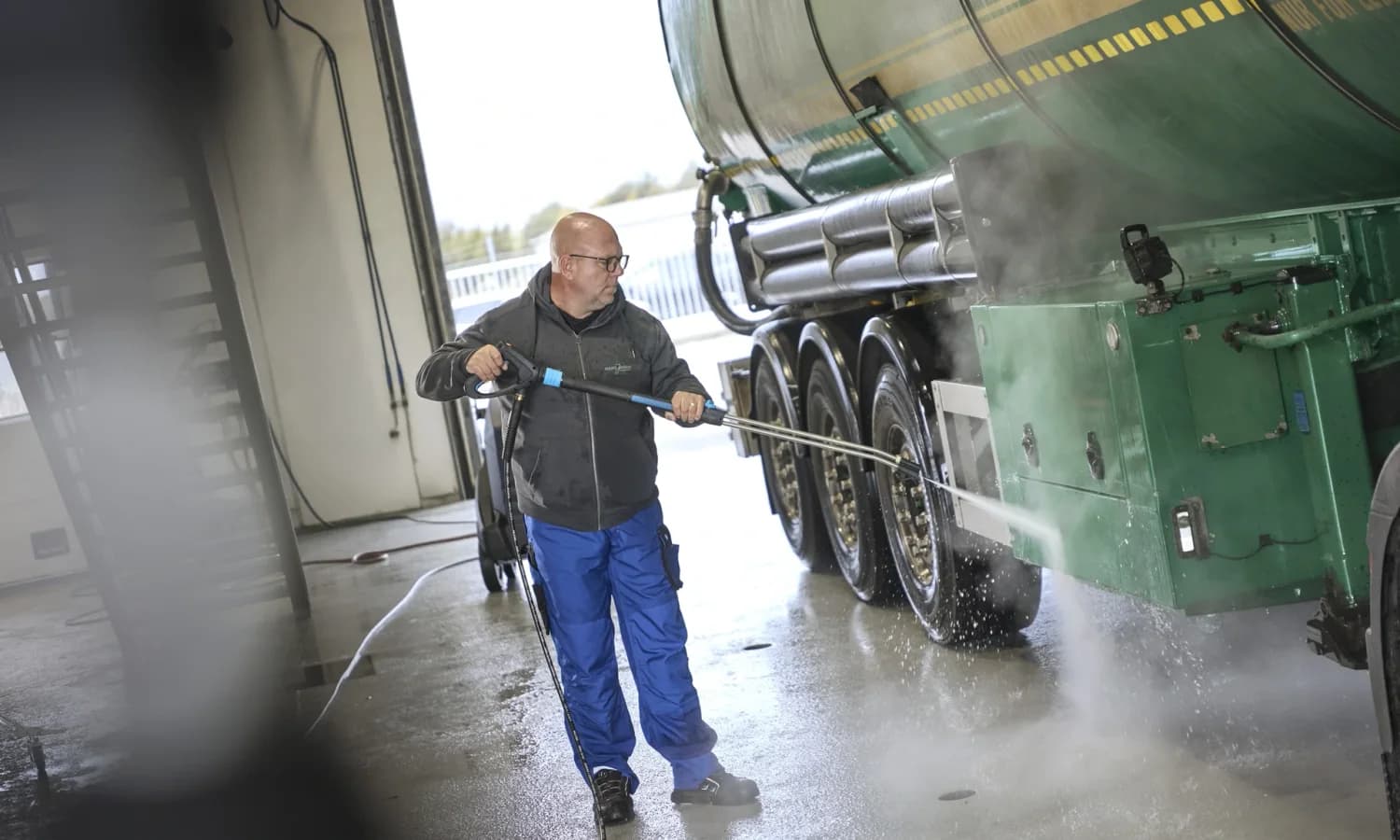

Operator pressure washing a commercial tanker vehicle
Official field reference

Official Nilfisk application image of commercial vehicle cleaning; asset-maker restrictions and wastewater controls must be verified.

Buyer focusTreat the photographed setting as context only. Validate utilities, surface compatibility, operating space, operator controls, environmental conditions and the planned work process on site.

Official image source

Oily fleet and equipment soil

EvidenceManufacturers position named machines for vehicle, agriculture or industrial cleaning.

ScopeApproved surfaces and runoff controls.

Verified2026-08-09

Sourceskarcher-hds30, nilfisk-mh40, lavor-darwin

WCB assessment

A witnessed trial should compare the lowest effective temperature, pressure, flow and chemistry.

Basis
Official automotive, agriculture and equipment-cleaning positioning.
Limitations
No asset-maker approval or degreasing result is implied.
Buyer action
Record soil, surface, temperature, nozzle, distance, time, water and chemical use.

Indoor hygiene or food-adjacent areas

EvidenceKärcher positions electric heating for hygiene areas and other exhaust-sensitive locations.

ScopeNamed model and local requirements.

Verified2026-08-09

Sourceskarcher-hdse

WCB assessment

Electric heating may remove burner exhaust but does not prove hygienic efficacy or food-area authorization.

Basis
Official exhaust-restricted application positioning.
Limitations
No disinfection, food-contact or microbiological result is established.
Buyer action
Obtain written site, chemistry, temperature-contact and sanitation requirements.

Dedicated wash bay

EvidenceOfficial sources describe commercial and fixed-use architectures.

ScopeActual facility.

Verified2026-08-09

Sourcesoertzen-h120, ipc-pwh21

WCB assessment

Utility capacity, ventilation, scale control and wastewater handling should be designed as one system.

Basis
Official mobile and stationary system architectures.
Limitations
No facility design approval is provided.
Buyer action
Have qualified parties verify water, power, fuel, flue, drainage and service clearances.

System component map

Component families and compatibility boundaries

Component families are labels only. No component link or cross-model compatibility is claimed.

WCB hot-water pressure washer component verification map
WCB technical diagram

WCB diagram separating water, pump, heater, fuel or electrical, spray-system and runoff checks. It does not establish part compatibility.

Buyer focusBefore substitution or service work, match the current manual, model and serial range, part number, physical interface, approved material or chemistry, and electrical configuration.

Evidence sourceskarcher-hds30, karcher-hdse, nilfisk-mh40, lavor-darwin, ipc-pwh21, oertzen-h120

Pump and unloader

Generates and regulates high-pressure flow.

Common variants
  • Axial or in-line piston pump
  • Flow- or pressure-controlled stop system
Critical checks
  • Pump part number
  • Working pressure and flow
  • Seal temperature rating
  • Service interval

EvidenceOfficial sources describe product-specific pumps and controls.

ScopeFamily labels do not establish cross-model compatibility.

Verified2026-08-09

Sourcesnilfisk-mh40, lavor-darwin, oertzen-h120

Heating system

Transfers fuel or electrical energy into the water stream.

Common variants
  • Oil-fired boiler
  • Electric resistance heater
  • Model-defined steam stage
Critical checks
  • Heat source
  • Rated output temperature
  • Fuel or circuit
  • Flue and service access

EvidenceManufacturer pages identify distinct heat architectures.

ScopeExact model and regional version.

Verified2026-08-09

Sourceskarcher-hds30, karcher-hdse, lavor-darwin

Scale and water treatment

Protects heater and hydraulic paths from unsuitable supply water.

Common variants
  • Inlet filtration
  • Dosing or anti-scale system
  • Header tank
Critical checks
  • Water hardness limit
  • Consumable part number
  • Dosing instruction
  • Winterisation

EvidenceOfficial pages identify scale-protection features.

ScopeSite water quality and exact system.

Verified2026-08-09

Sourceslavor-darwin, oertzen-h120

Hot-rated spray system

Transfers and controls pressurised heated water.

Common variants
  • High-pressure hose
  • Trigger gun and lance
  • Fan or rotary nozzle
Critical checks
  • Pressure rating
  • Temperature rating
  • Coupling and product code
  • Recoil and PPE

EvidenceManufacturer sources list exact spray systems.

ScopeNo visual or cross-brand fit inference.

Verified2026-08-09

Sourcesiec-pressure-safety, karcher-hds30, lavor-darwin

Fuel, electrical and exhaust system

Supplies pump drive and heat while controlling combustion or circuit loads.

Common variants
  • Electric pump plus oil burner
  • All-electric heating
  • Engine-driven pump
Critical checks
  • Voltage and phase
  • Fuel type and tank
  • Ventilation or flue
  • Local emissions rules

EvidenceOfficial sources distinguish energy configurations.

ScopeExact installation and jurisdiction.

Verified2026-08-09

Sourceskarcher-hds30, karcher-hdse, oertzen-h120

Verified relationships

Related brands and representative models

Representative, not exhaustive. A link means the official source connects the named brand and model; it does not establish a factory, OEM or component-supplier relationship.

6 verified models
Representative hot-water pressure washer models
BrandModelSubtypeOfficial specification referenceMarket scopeVerifiedSource
KärcherHDS 3.0/20-4 Ea/Eg StandardElectric-pump, diesel-heated mobile unit
  • 3 gal/min flow
  • 2000 psi operating pressure
  • 208–230 V single-phase reviewed version
Kärcher US commercial page2026-08-09karcher-hds30
KärcherHDS-E 8/16-4 M 24 kWElectrically heated hot-water unit
  • 24 kW heating output
  • Maximum stated operating temperature 85 °C
  • Exhaust-free electric heating
Kärcher India professional page2026-08-09karcher-hdse
NilfiskMH40M-190/940 PAMobile medium-class hot-water washer
  • 190/940 model designation
  • MH Standard hot-water platform
  • Biofuel-compatible claim on reviewed page
Nilfisk global product page2026-08-09nilfisk-mh40
LavorDARWIN PRO 1310 LPCompact oil-fired hot-water washer
  • 135 bar operating pressure
  • 600 l/h delivery rate
  • 230 V / 50 Hz reviewed version
Lavor professional product page2026-08-09lavor-darwin
IPCPW-H21 PLUSCompact hot-water high-pressure washer
  • PLUS configuration
  • PW-H21 hot-water series
  • Agriculture, HORECA, light-industry and automotive positioning
IPC global product page2026-08-09ipc-pwh21
OertzenH120-9 E.DCompact commercial hot-water washer
  • 120 bar maximum working pressure
  • 540 l/h maximum flow
  • 140 °C stated maximum water temperature
Hako-hosted Oertzen product page2026-08-09oertzen-h120

WCB decision support

Procurement decision matrix

No composite score or brand ranking. Each row identifies a comparison trap and the next verification action.

WCB assessment

Remove oily or persistent soil

Verify
Result at the lowest effective heat, pressure, flow and chemistry
Comparison trap
Assuming maximum temperature replaces process testing
Assessment
Specify a controlled site trial and record all settings.
Basis
Cleaning result depends on the complete thermal, hydraulic and chemical process.
Limitations
No normalized cross-brand cleaning test was found.
Buyer action
Test representative soil and calculate labor, fuel, water and chemical use.
Engineering check
Confirm surface temperature tolerance and rated spray system.

EvidenceOfficial sources publish different thermal and hydraulic configurations.

ScopeActual site and quoted model.

Verified2026-08-09

Sourceskarcher-hds30, karcher-hdse, nilfisk-mh40, lavor-darwin, ipc-pwh21, oertzen-h120

WCB assessment

Operate indoors

Verify
Heat source, exhaust, ventilation and electrical capacity
Comparison trap
Treating electric pump drive as electric water heating
Assessment
Read the energy architecture line by line.
Basis
Pump and heater can use different sources.
Limitations
No indoor approval is inferred.
Buyer action
Obtain a written configuration and qualified ventilation or electrical assessment.
Engineering check
Confirm burner, flue, fuel, phase, current and protective devices.

EvidenceOfficial products demonstrate mixed and all-electric architectures.

ScopeExact delivered machine.

Verified2026-08-09

Sourceskarcher-hds30, karcher-hdse, oertzen-h120

WCB assessment

Run a daily wash bay

Verify
Duty cycle, scale control, service access and wastewater
Comparison trap
Buying by pressure-flow headline alone
Assessment
Cost the heater, pump, consumables, maintenance and downtime as one system.
Basis
Hot-water machines add boiler and water-treatment service needs.
Limitations
No common duty-cycle definition is available.
Buyer action
Request written duty limits, service intervals and local parts inventory.
Engineering check
Verify coil, burner or heater, pump, filters, seals and treatment consumables.

EvidenceOfficial sources document heater, pump and treatment features.

ScopeQuoted configuration and service market.

Verified2026-08-09

Sourcesnilfisk-mh40, lavor-darwin, oertzen-h120

Engineering validation

Checks before parts, configuration or service decisions

This checklist narrows verification work; it is not a compatibility guarantee or repair manual.

01

Pressure-temperature compatibility

Every wetted high-pressure component must withstand the selected mode.

Required actionMatch hose, gun, lance, nozzle and coupling part numbers to the exact model.

EvidenceSafety and manufacturer sources define model-specific spray systems.

ScopeNo cross-brand compatibility.

Verified2026-08-09

Sourcesiec-pressure-safety, karcher-hds30, lavor-darwin

02

Combustion and ventilation

Oil-fired or engine configurations create fuel, exhaust and heat hazards.

Required actionDocument permitted location, ventilation, flue, fuel storage and fire controls.

EvidenceOfficial sources disclose combustion heating or drive.

ScopeActual site and jurisdiction.

Verified2026-08-09

Sourceskarcher-hds30, lavor-darwin, oertzen-h120

03

Electrical load

Pump motors and electric heaters can require different voltage, phase and circuit capacity.

Required actionHave the exact nameplate and installation checked by a qualified party.

EvidenceOfficial pages publish model-specific electrical data.

ScopeRegional product and site circuit.

Verified2026-08-09

Sourceskarcher-hds30, karcher-hdse

04

Water quality and runoff

Scale can affect the heater and dislodged soil may require controlled disposal.

Required actionTest supply water and document treatment, drainage and contaminant handling.

EvidenceOfficial sources identify scale control while discharge obligations remain site-specific.

ScopeActual water and task.

Verified2026-08-09

Sourceslavor-darwin, oertzen-h120

Standards boundary

Safety and performance references

IEC 60335-2-79:2021

JurisdictionInternational

Version2021

ApplicabilitySafety scope for covered high-pressure cleaners, subject to pressure range, drive type, regional adoption and listed exclusions.

EvidenceIEC publishes the standard scope and revision.

ScopeConfirm exact product conformity and regional adoption.

Verified2026-08-09

Sourcesiec-pressure-safety

IEC 62885-5:2018

JurisdictionInternational

Version2018

ApplicabilityMethods for describing characteristic performance parameters of covered high-pressure cleaners and steam cleaners.

EvidenceIEC publishes the performance-method scope.

ScopeDoes not make unmatched catalogue values directly comparable.

Verified2026-08-09

Sourcesiec-pressure-performance

Technical developments

Selected changes in hot-water pressure washer systems

  1. IEC high-pressure-cleaner safety edition published

    IEC published edition 5.0 of IEC 60335-2-79 with revised scope and requirements.

    EvidenceIEC records the publication date and revision.

    ScopeInternational base standard.

    Verified2026-08-09

    Sourcesiec-pressure-safety

Evidence record

Sources

First published 2026-08-09 · Last verified 2026-08-09 · Last material modification 2026-08-09

  1. standard

    IEC 60335-2-79:2021

    International Electrotechnical Commission

    Open official source

    Accessed 2026-08-09 · Published 2021-06-23

  2. standard

    IEC 62885-5:2018

    International Electrotechnical Commission

    Open official source

    Accessed 2026-08-09 · Published 2018-08-29

  3. manufacturer

    HDS 3.0/20-4 Ea/Eg Standard

    Kärcher

    Open official source

    Accessed 2026-08-09

  4. manufacturer

    HDS-E 8/16-4 M 24 kW

    Kärcher

    Open official source

    Accessed 2026-08-09

  5. manufacturer

    MH40M-190/940 PA 230/3/50 NO

    Nilfisk

    Open official source

    Accessed 2026-08-09

  6. manufacturer

    DARWIN PRO Hot Water High Pressure Cleaner

    Lavor

    Open official source

    Accessed 2026-08-09

  7. manufacturer

    PW-H21 PLUS Hot Water High Pressure Washer

    IPC

    Open official source

    Accessed 2026-08-09

  8. manufacturer

    Oertzen H120-9 E.D

    Hako / Oertzen

    Open official source

    Accessed 2026-08-09
