Escalator Cleaner

Escalator cleaner types, tread and riser systems, fit and buyer verification

This technical profile distinguishes tread, riser, dry, wet, stationary and step-progressing escalator cleaners and explains moisture, comb, brush, positioning and site-safety checks.

Included
  • Dedicated escalator tread cleaners
  • Dedicated escalator riser cleaners
  • Moving-walkway cleaners
  • Dry and controlled-wet specialist systems
Excluded
  • Ordinary floor scrubber-dryers without escalator approval
  • Manual brushes and hand tools
  • Handrail cleaning unless specifically documented
  • Intervention in escalator controls without site authorization

First published 2026-08-09 · Last verified 2026-08-09

This is an independent category reference, not escalator operation, lockout, maintenance, electrical-safety or cleaning-chemical advice. Obtain the conveyance owner and competent maintenance provider's written procedure for the exact escalator, machine, direction, position, brushes, combs, solution and supervision.

Official equipment reference

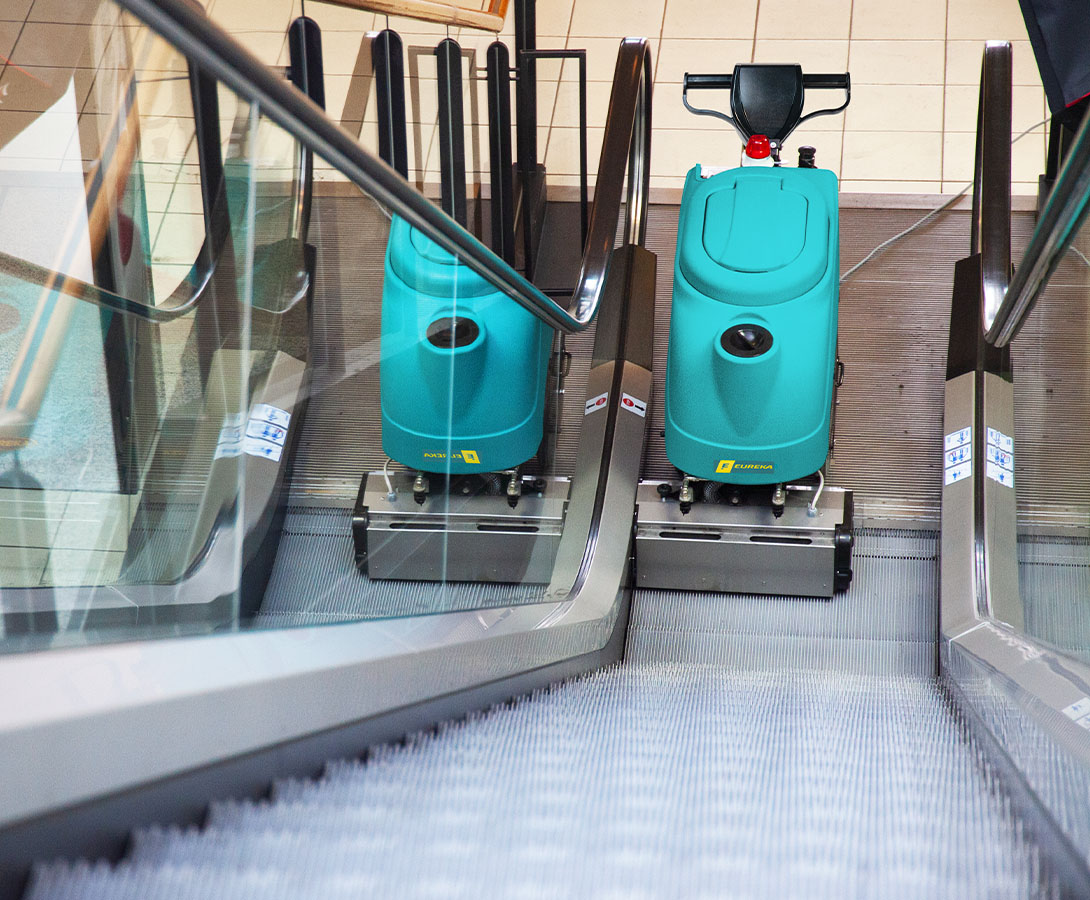

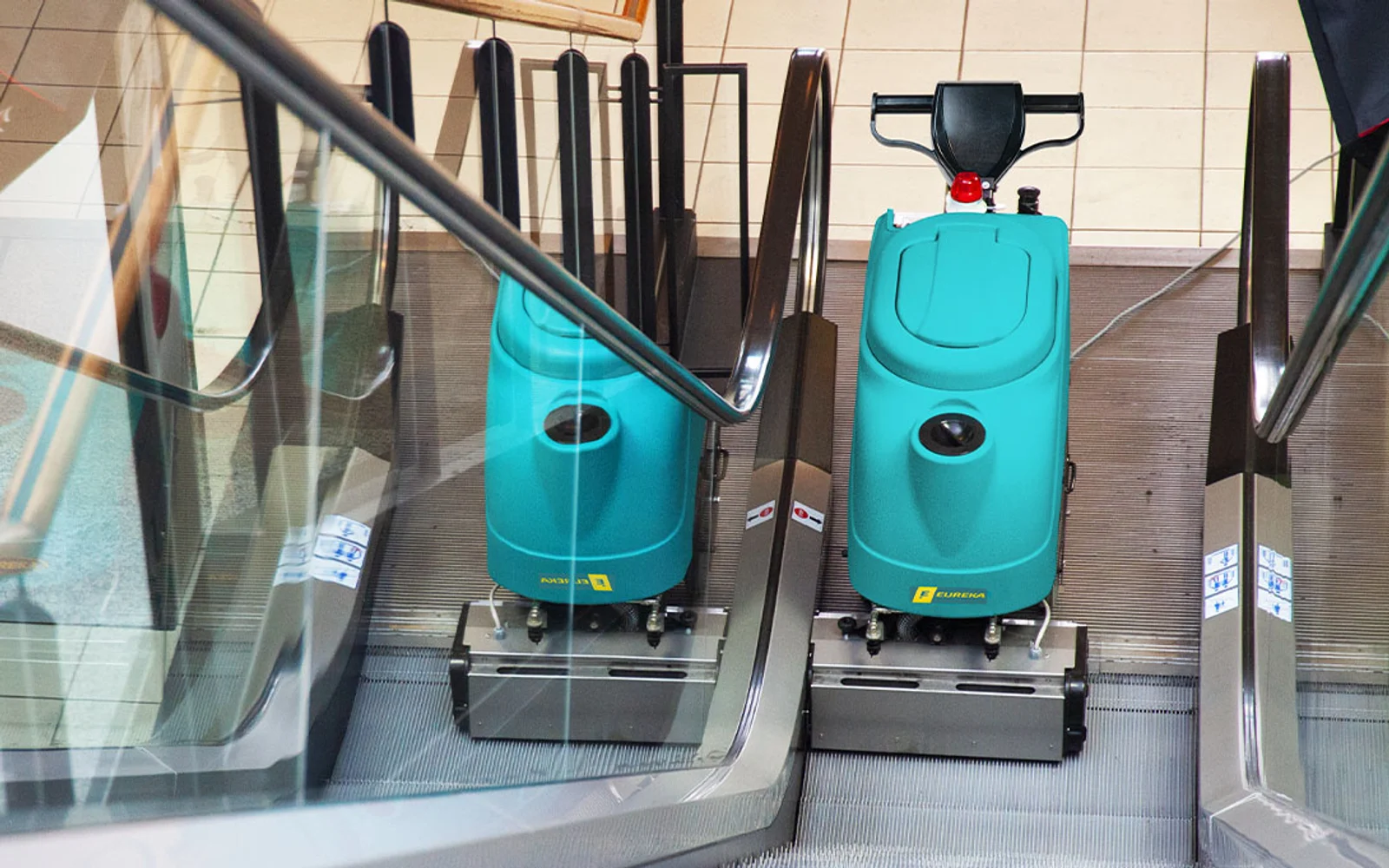

Eureka EC52 escalator cleaner positioned on an escalator with its auxiliary vacuum
Official Eureka application image showing an EC52 cleaning setup on an escalator. Site authorization, positioning, direction and supervision remain escalator-specific. Official image source
Escalator Cleaner key facts
FactTechnical referenceScope boundary
Cleaning boundaryTreads, grooves, risers and handrails are separate tasksExact machine and accessory kit.
Operating boundaryMachines can be stationary on a moving conveyance or progress step-by-stepNamed models and manufacturer procedure.
Moisture boundarySolution delivery and recovery must be controlled to protect the conveyance and usersExact detergent, recovery system, escalator and procedure.
Safety boundaryCleaning-machine suitability does not replace escalator operating and maintenance requirementsApplicable jurisdiction, owner procedure and exact conveyance.

WCB explanatory visual

Escalator Cleaner working system

An original system map synthesized from reviewed operator manuals. It explains functional flow, not a universal machine architecture.

  1. 01

    Site isolation and setup

    Barriers, landing position and owner procedure

    Controls public access and defines authorized conveyance state and direction.

    EvidenceStandards and manuals place operation within trained, controlled procedures.

    ScopeSite and jurisdiction-specific.

    Verified2026-08-09

    Sourcesasme-a171, columbus-manual, truvox-x46

  2. 02

    Machine-to-step interface

    Guides, combs, rollers or positioning mechanism

    Aligns the cleaning head with grooves, tread or riser.

    EvidenceKärcher documents guide comb sets; Columbus and Eureka describe model-specific positioning.

    ScopeExact step geometry and machine setup.

    Verified2026-08-09

    Sourceskarcher-br47, columbus-step110, eureka-erc45

  3. 03

    Soil removal

    Roller, strip or Tynex brushes

    Loosens dry debris or bonded soil from the defined surface.

    EvidenceOfficial product pages publish brush systems and speeds for named machines.

    ScopeBrush material, pressure and surface are model-specific.

    Verified2026-08-09

    Sourceskarcher-br52, truvox-x46, eureka-erc45

  4. 04

    Solution control

    Tank, pump, nozzles and approved detergent

    Applies controlled moisture where wet cleaning is approved.

    EvidenceKärcher, Columbus and Eureka describe solution delivery and approved wet cycles.

    ScopeExact chemical, dilution, flow and escalator approval.

    Verified2026-08-09

    Sourceskarcher-br47, columbus-step110, eureka-ec52

  5. 05

    Recovery and handover

    Pickup brushes, suction path, recovery tank and dryness check

    Removes dirty solution and supports safe return to service.

    EvidenceOfficial sources document suction and recovery systems.

    ScopeAchieved dryness and handover remain site-specific.

    Verified2026-08-09

    Sourceskarcher-br47, columbus-step110, eureka-ec52

Equipment taxonomy

Main escalator cleaner formats

These formats describe operator relationship and task scale. None is a universal winner.

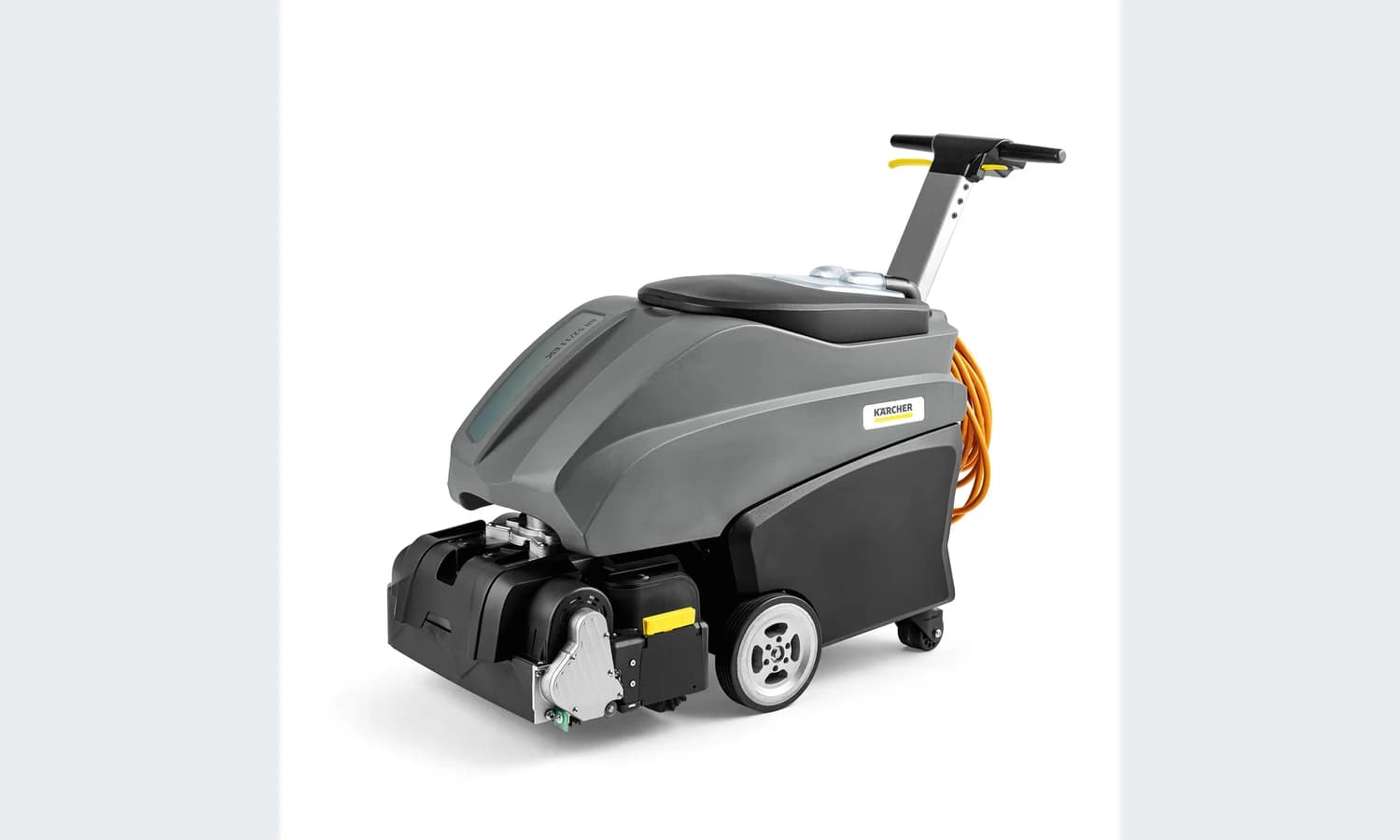

Kärcher BR 52/11 ESC escalator cleaner
Official field reference

Official Kärcher product image of the BR 52/11 ESC. Product imagery does not establish fit or authorization for a particular escalator.

Buyer focusUse the format as a starting point, then compare the operating envelope, utilities, duty cycle, operator workflow, accessory system and the exact configured machine.

Official image source

Stationary wet tread cleaner

Task scale
Maintenance or deep cleaning of treads while the conveyance moves under controlled procedure
Operator
Machine remains positioned at the landing and requires supervision
Space
Landing clearance, direction and barrier area are required
Limit
Comb or guide fit and moisture recovery must be approved for the exact escalator.

EvidenceKärcher documents BR 47/35 Esc operation at the lower landing during conveyance movement.

ScopeNamed model and procedure.

Verified2026-08-09

Sourceskarcher-br47

Step-progressing wet cleaner

Task scale
Deep cleaning of treads and risers during step-by-step machine travel
Operator
Trained operator supervises programmed or controlled progression
Space
Machine mass, transport and step geometry affect use
Limit
No universal fit or return-to-service time is inferred.

EvidenceColumbus describes Step 110 climbing step-by-step and cleaning treads and risers.

ScopeNamed machine and compatible step geometry.

Verified2026-08-09

Sourcescolumbus-step110, columbus-manual

Dry tread or riser-specific cleaner

Task scale
Routine debris removal or dedicated vertical-riser cleaning
Operator
Machine is positioned or moved according to the defined surface
Space
Auxiliary vacuum, trolley or battery logistics can be required
Limit
A riser cleaner does not replace tread cleaning, and dry cleaning may not remove bonded soil.

EvidenceTruvox documents dry brushing and vacuum pickup; Eureka distinguishes EC52 treads from ERC45 risers.

ScopeNamed models.

Verified2026-08-09

Sourcestruvox-x46, eureka-ec52, eureka-erc45

Specification dictionary

What the performance metrics do—and do not—mean

Escalator Cleaner performance metric dictionary
MetricPurchasing meaningReporting boundaryComparison caution
Cleaning scopeDefines tread, groove, riser or moving-walkway coverageAccessory tools and secondary functions must be separated from the main cycleDo not compare machines as equivalent if they clean different surfaces.
Working width and step geometrySupports fit to step width, groove and riser dimensionsNominal width does not prove comb, guide or edge fitRequest a model-specific compatibility demonstration.
Solution and recovery capacitySupports wet-cycle duration and disposal planningTank litres do not establish moisture left in the conveyanceRecovery result must be verified on site.
Brush speed, pressure and materialSupports soil and surface matchingDifferent brush geometries and test conditions prevent simple rankingAggressiveness can damage finishes or increase wear.
Cleaning time or productivitySupports closure-window planningSoil, escalator length, width, method and setup change timeManufacturer theoretical or example rates are not achieved site output.
Cleaning scope evidence

EvidenceOfficial sources distinguish machine coverage.

ScopeExact model and kit.

Verified2026-08-09

Sourceseureka-ec52, eureka-erc45, columbus-travel600

Working width and step geometry evidence

EvidenceKärcher and Columbus publish widths and adjustment features.

ScopeActual escalator make, model and step.

Verified2026-08-09

Sourceskarcher-br47, columbus-step110

Solution and recovery capacity evidence

EvidenceManufacturers publish fresh and recovery tank capacities.

ScopeNamed wet-cleaning models.

Verified2026-08-09

Sourceskarcher-br47, columbus-step110, eureka-ec52

Brush speed, pressure and material evidence

EvidenceOfficial sources publish selected brush data and kits.

ScopeExact brush code and surface.

Verified2026-08-09

Sourceskarcher-br52, truvox-x46, eureka-erc45

Cleaning time or productivity evidence

EvidenceKärcher and Eureka state method-dependent rates or time boundaries.

ScopeSource conditions only.

Verified2026-08-09

Sourceskarcher-br47, eureka-ec52

Evidence + WCB interpretation

Application-fit matrix

Official application evidence does not establish automatic suitability. Each row shows what still needs to be tested.

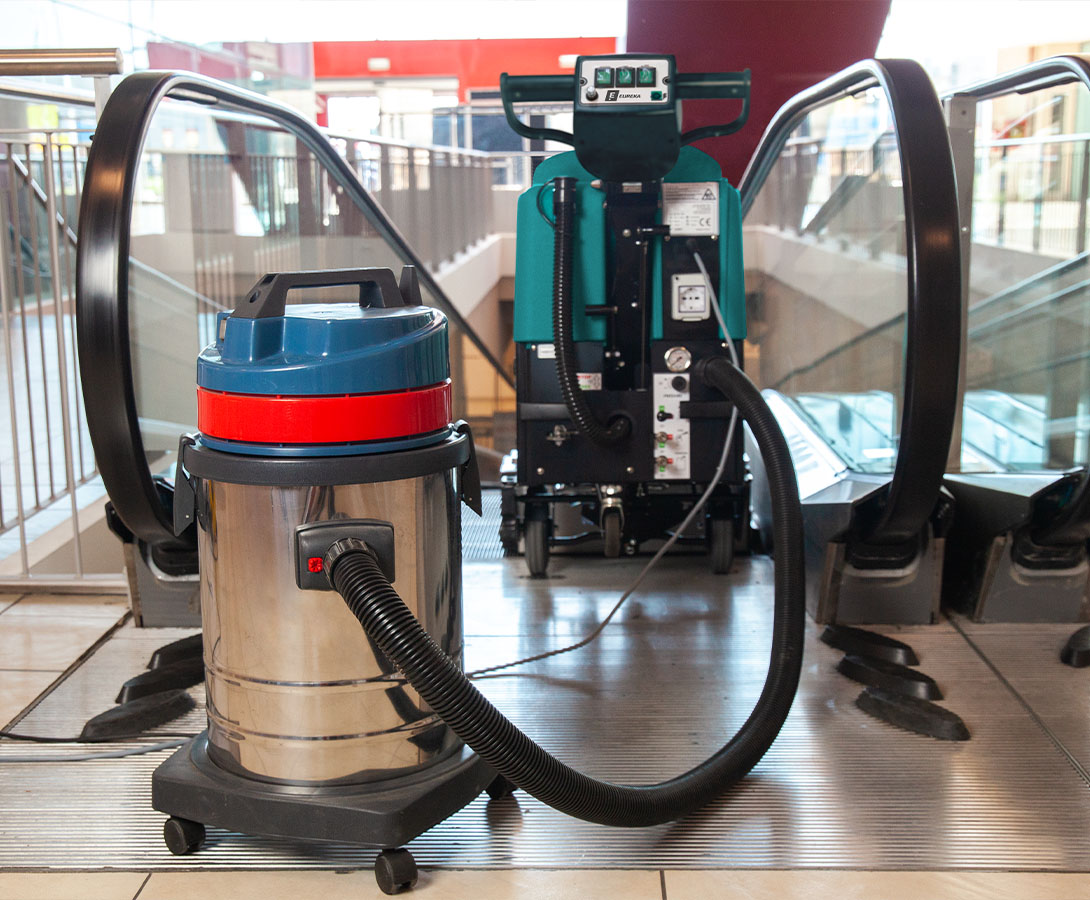

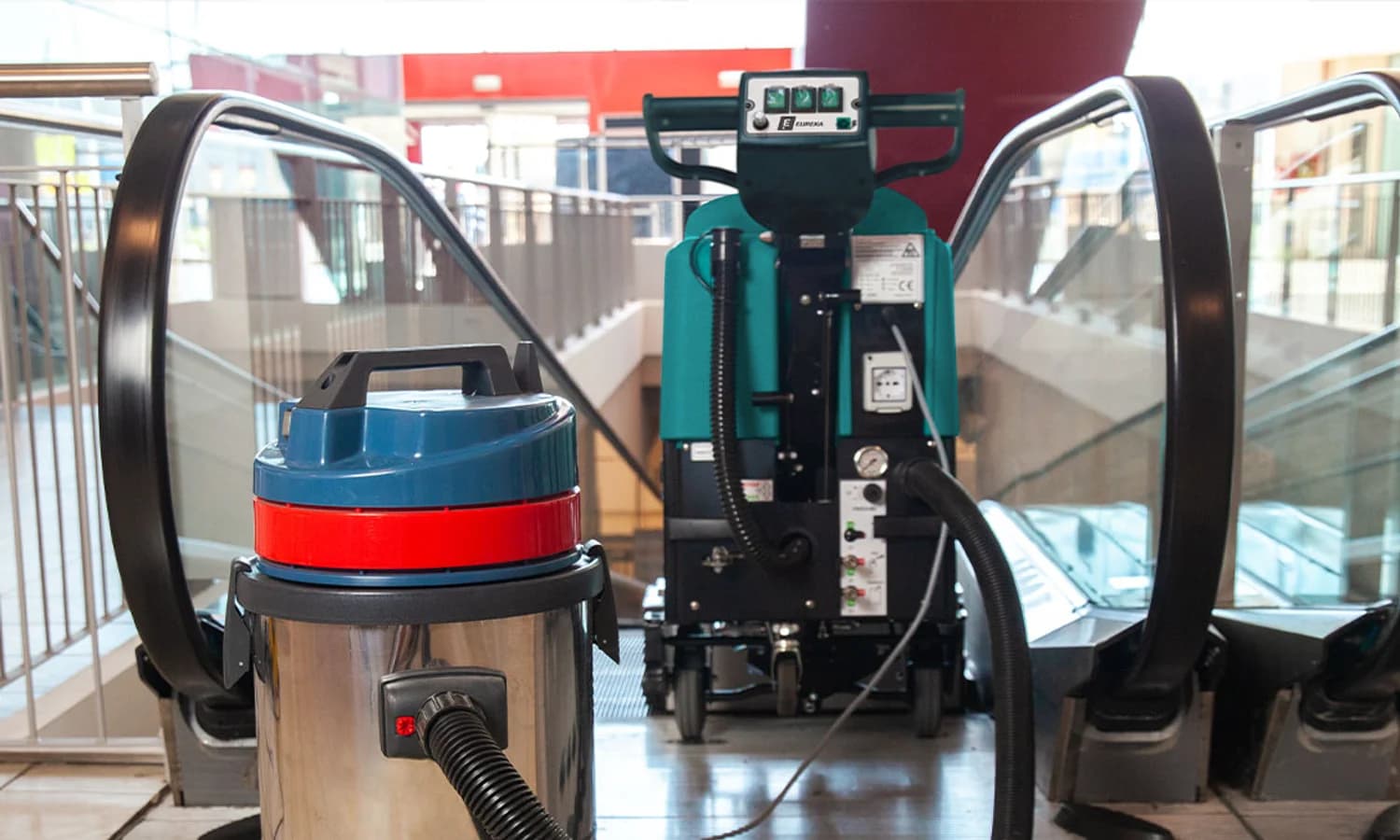

Eureka EC52 escalator cleaner and auxiliary vacuum at an escalator landing
Official field reference

Official Eureka image illustrating the machine, auxiliary vacuum and landing-area setup; barriers, pedestrian control and site procedures are not shown as universal.

Buyer focusTreat the photographed setting as context only. Validate utilities, surface compatibility, operating space, operator controls, environmental conditions and the planned work process on site.

Official image source

Routine dry maintenance of treads

EvidenceTruvox Cimex X46 integrates vacuum pickup and dry scrubbing; Eureka EC52 includes a dry cycle.

ScopeNamed machines and approved debris.

Verified2026-08-09

Sourcestruvox-x46, eureka-ec52

WCB assessment

Dry cycles can reduce loose debris before wet work but do not replace deep cleaning of bonded soil.

Basis
Official method descriptions.
Limitations
No universal cleaning interval is established.
Buyer action
Trial the route and record groove pickup, edge coverage and dust disposal.

Wet deep cleaning of escalator treads

EvidenceKärcher, Columbus and Eureka publish dedicated wet-cleaning systems with recovery.

ScopeExact escalator, chemical and machine setup.

Verified2026-08-09

Sourceskarcher-br47, columbus-step110, eureka-ec52

WCB assessment

Residual moisture and leakage risk should be acceptance criteria, not assumed from tank size.

Basis
Solution-recovery architecture.
Limitations
No site dryness result is provided.
Buyer action
Require a witnessed demonstration and inspect steps, comb plate, pit and return side before handover.

Riser cleaning

EvidenceEureka ERC45 is dedicated to washing and vacuum drying vertical step risers; Columbus Step 110 also documents simultaneous tread and riser cleaning.

ScopeNamed methods and approved step geometry.

Verified2026-08-09

Sourceseureka-erc45, columbus-step110

WCB assessment

Riser coverage should be specified separately from tread claims.

Basis
Official product scopes.
Limitations
Handrails and landing plates are not automatically included.
Buyer action
Define every surface in the acceptance checklist and inspect it after the trial.

Moving walkways

EvidenceKärcher, Columbus and Eureka publish moving-walkway or travelator compatibility for selected models.

ScopeExact belt or pallet geometry and manufacturer authorization.

Verified2026-08-09

Sourceskarcher-br47, columbus-travel600, eureka-ec52

WCB assessment

A travelator label does not prove fit to every moving walkway.

Basis
Model-specific official positioning.
Limitations
Slope, groove and landing configurations vary.
Buyer action
Obtain written fit confirmation and demonstrate the exact walkway before purchase.

System component map

Component families and compatibility boundaries

Component families are labels only. No component link or cross-model compatibility is claimed.

WCB escalator cleaner verification map
WCB technical diagram

WCB map separating tread or riser interface, solution control, recovery, positioning, conveyance and site-procedure checks.

Buyer focusBefore substitution or service work, match the current manual, model and serial range, part number, physical interface, approved material or chemistry, and electrical configuration.

Evidence sourcesiec-72, asme-a171, karcher-br47, columbus-step110, eureka-ec52

Guides, combs and positioning hardware

Align and stabilize the machine at the tread or riser interface.

Common variants
  • Guide comb sets
  • Centering skid
  • Step-to-step movement mechanism
Critical checks
  • Step and groove fit
  • Direction and landing position
  • Wear and clearance
  • Part number

EvidenceOfficial sources document model-specific alignment systems.

ScopeNo universal escalator compatibility.

Verified2026-08-09

Sourceskarcher-br47, columbus-step110, eureka-erc45

Brush systems

Loosen debris and bonded soil from grooves, treads or risers.

Common variants
  • Counter-rotating rollers
  • Nylon maintenance brushes
  • Tynex deep-clean brushes
  • Riser brushes
Critical checks
  • Surface approval
  • Material and stiffness
  • Speed and pressure
  • Replacement code

EvidenceManufacturers publish named brush systems and kits.

ScopeExact machine and surface.

Verified2026-08-09

Sourceskarcher-br52, truvox-x46, eureka-erc45

Solution system

Meters approved detergent solution onto the cleaning interface.

Common variants
  • Tank and pump
  • Spray nozzles
  • Misted solution
Critical checks
  • Approved chemistry
  • Dilution and foam
  • Flow setting
  • Corrosion compatibility

EvidenceOfficial sources document wet cycles and solution control.

ScopeExact detergent, machine and conveyance.

Verified2026-08-09

Sourceskarcher-br47, columbus-step110, eureka-ec52

Recovery and vacuum path

Collects loosened soil and dirty solution.

Common variants
  • Pickup brushes and suction slots
  • Auxiliary vacuum
  • Recovery tank
Critical checks
  • Seal to grooves
  • Hose and filter condition
  • Residual moisture
  • Tank emptying

EvidenceManufacturers publish suction and recovery architectures.

ScopeExact setup and step geometry.

Verified2026-08-09

Sourceskarcher-br47, columbus-step110, eureka-ec52

Power, transport and site controls

Supplies energy, moves the machine and supports controlled public-area work.

Common variants
  • Mains cable
  • Battery riser machine
  • Transport trolley and barriers
Critical checks
  • Voltage and cable
  • Machine mass and lifting
  • Battery and charger
  • Owner procedure and exclusion zone

EvidenceOfficial pages and manuals publish power, mass and trained-use boundaries.

ScopeExact site and regional product.

Verified2026-08-09

Sourcescolumbus-step110, truvox-x46, eureka-erc45, asme-a171

Verified relationships

Related brands and representative models

Representative, not exhaustive. A link means the official source connects the named brand and model; it does not establish a factory, OEM or component-supplier relationship.

7 verified models
Representative escalator cleaner models
BrandModelSubtypeOfficial specification referenceMarket scopeVerifiedSource
KärcherBR 47/35 EscStationary wet tread cleaner
  • 470 mm brush working width
  • 35/35 L fresh and recovery tanks
  • 870–1090 rpm stated brush speed
Kärcher international product 1.310-109.02026-08-09karcher-br47
KärcherBR 52/11 ESCStationary escalator cleaner
  • 20.5-inch stated brush width
  • 1200 rpm stated brush speed
  • 110 V US configuration
Kärcher North America product 1.310-112.02026-08-09karcher-br52
ColumbusStep 110Step-progressing wet tread and riser cleaner
  • 520 mm working width
  • 20/20 L solution and recovery tanks
  • 185–235 mm stated step-height range
Columbus international product page2026-08-09columbus-step110
ColumbusTravel 600Moving-walkway and tread cleaner
  • 2 x 220 mm stated working width
  • 15/15 L solution and recovery tanks
  • 126 kg stated empty weight
Columbus international product page2026-08-09columbus-travel600
TruvoxCimex X46Dry escalator and travelator cleaner
  • Vacuum pickup and dry scrubbing
  • 23 cm stated brush diameter
  • 15 m stated cable
Truvox global catalogue and manual2026-08-09truvox-x46
EurekaEC52Dry and misted-solution tread cleaner
  • 35/35 L solution and recovery tanks
  • 30 kg stated brush pressure
  • Dry and detergent cycles
Eureka international product page2026-08-09eureka-ec52
EurekaERC45Battery escalator riser cleaner
  • Dedicated riser cleaning
  • 36 V lithium-ion battery system
  • 1 L solution and 1.7 L recovery tanks
Eureka international product page2026-08-09eureka-erc45

WCB decision support

Procurement decision matrix

No composite score or brand ranking. Each row identifies a comparison trap and the next verification action.

WCB assessment

Wet escalator deep cleaning

Verify
Exact step fit, authorized conveyance state, solution control and achieved recovery
Comparison trap
Buying by tank size or a universal-fit claim alone
Assessment
A witnessed on-site trial should be mandatory.
Basis
Machine-to-conveyance and moisture boundaries.
Limitations
No category-wide fit or dryness is established.
Buyer action
Require owner and maintenance-provider approval before the demonstration.
Engineering check
Inspect combs, guides, brush contact, leakage, recovery and the pit after the cycle.

EvidenceOfficial sources require model-specific guides, positioning and recovery systems.

ScopeExact escalator make, model, step geometry and owner procedure.

Verified2026-08-09

Sourceskarcher-br47, columbus-step110, eureka-ec52

WCB assessment

Routine dry maintenance

Verify
Groove pickup, edge coverage, dust containment and closure time
Comparison trap
Assuming dry brushing removes bonded oils or spills
Assessment
Dry cleaning can form one layer of a multi-method program.
Basis
Official dry-cycle scope.
Limitations
Deep-clean result is not implied.
Buyer action
Trial measured dry debris and define when wet or manual detail work is triggered.
Engineering check
Verify brush code, vacuum filter, bag and edge sequence.

EvidenceTruvox and Eureka separate dry debris removal from wet cleaning.

ScopeActual soil and tread.

Verified2026-08-09

Sourcestruvox-x46, eureka-ec52

WCB assessment

Complete tread and riser appearance

Verify
Separate coverage of horizontal tread, grooves, vertical riser, edges and landing plates
Comparison trap
Treating a tread cleaner as a complete escalator solution
Assessment
Acceptance criteria should list surfaces rather than one overall cleanliness score.
Basis
Surface-specific equipment boundary.
Limitations
Handrails and pits remain separate unless documented.
Buyer action
Create a surface-by-surface scope and inspect each after the trial.
Engineering check
Confirm which machine or accessory addresses every surface.

EvidenceEureka explicitly separates EC52 tread and ERC45 riser functions.

ScopeNamed machines and surfaces.

Verified2026-08-09

Sourceseureka-ec52, eureka-erc45, columbus-step110

Engineering validation

Checks before parts, configuration or service decisions

This checklist narrows verification work; it is not a compatibility guarantee or repair manual.

01

Escalator make, model and step geometry

Guide, comb, width and movement interfaces must fit the exact conveyance.

Required actionObtain written compatibility and demonstrate on the target escalator.

EvidenceManufacturers describe model-specific adjustment and fit systems.

ScopeExact conveyance and machine.

Verified2026-08-09

Sourceskarcher-br47, columbus-step110, eureka-ec52

02

Authorized state, direction and landing position

Stationary and step-progressing cleaners use different conveyance procedures.

Required actionUse an owner-approved written method with trained operators and barriers.

EvidenceOfficial manuals and ASME safety scope establish controlled operation and maintenance boundaries.

ScopeApplicable site and jurisdiction.

Verified2026-08-09

Sourcesasme-a171, columbus-manual, truvox-x46

03

Moisture and chemical control

Leakage or incompatible chemistry can affect machinery, corrosion and slip risk.

Required actionApprove detergent, dilution, flow, recovery and final dryness checks.

EvidenceOfficial sources publish controlled solution and recovery systems.

ScopeExact chemical and conveyance.

Verified2026-08-09

Sourceskarcher-br47, columbus-step110, eureka-ec52

04

Transport, power and service logistics

Machine mass, stairs, cable, battery and brush replacement affect safe deployment.

Required actionPlan trolley or lift access, power, storage and replacement parts.

EvidenceManufacturers publish mass, electrical and maintenance features.

ScopeDelivered configuration and building route.

Verified2026-08-09

Sourcescolumbus-step110, truvox-x46, eureka-erc45

Standards boundary

Safety and performance references

IEC 60335-2-72:2021

JurisdictionInternational

Version2021

ApplicabilitySafety of powered commercial floor-treatment machines within the standard's defined applications and exclusions.

EvidenceIEC publishes the scope for commercial sweeping, scrubbing and pickup machines.

ScopeConfirm exact machine classification, regional adoption and product conformity; it is not escalator compatibility approval.

Verified2026-08-09

Sourcesiec-72

ASME A17.1/CSA B44

JurisdictionUnited States and Canada where adopted

Version2025 catalogue edition

ApplicabilitySafety code covering design, operation, inspection, testing, maintenance, alteration and repair of elevators, escalators and related conveyances.

EvidenceASME publishes the code scope.

ScopeConveyance safety baseline; not a cleaning-machine certification or universal operating procedure.

Verified2026-08-09

Sourcesasme-a171

Technical developments

Selected changes in escalator cleaner systems

  1. ASME lists the 2025 A17.1 safety code edition

    ASME's catalogue identifies A17.1-2025 as the current listed edition for elevators and escalators.

    EvidenceASME publishes the catalogue entry and code scope.

    ScopeNorth American jurisdictions where adopted.

    Verified2026-08-09

    Sourcesasme-a171

  2. IEC commercial floor-treatment safety edition published

    IEC published edition 5.0 of IEC 60335-2-72.

    EvidenceThe IEC catalogue records the publication date and scope.

    ScopeInternational base standard; exact escalator-cleaner classification requires confirmation.

    Verified2026-08-09

    Sourcesiec-72

Evidence record

Sources

First published 2026-08-09 · Last verified 2026-08-09 · Last material modification 2026-08-09

  1. standard

    IEC 60335-2-72:2021

    International Electrotechnical Commission

    Open official source

    Accessed 2026-08-09 · Published 2021-07-12

  2. standard

    A17.1 Safety Code for Elevators and Escalators

    ASME

    Open official source

    Accessed 2026-08-09

  3. manufacturer

    BR 47/35 Esc Ep Escalator Cleaner

    Kärcher

    Open official source

    Accessed 2026-08-09

  4. manufacturer

    BR 52/11 ESC Escalator Cleaner

    Kärcher North America

    Open official source

    Accessed 2026-08-09

  5. manufacturer

    Step 110 Escalator Cleaning Machine

    Columbus

    Open official source

    Accessed 2026-08-09

  6. manual

    Step 110 Operating Manual

    Columbus

    Open official source

    Accessed 2026-08-09

  7. manufacturer

    Travel 600 Escalator and Moving-Walkway Cleaner

    Columbus

    Open official source

    Accessed 2026-08-09

  8. manual

    Cimex X46 User Manual

    Truvox

    Open official source

    Accessed 2026-08-09

  9. manufacturer

    EC52 Escalator and Travelator Cleaner

    Eureka

    Open official source

    Accessed 2026-08-09

  10. manufacturer

    ERC45 Battery-Powered Escalator Riser Cleaner

    Eureka

    Open official source

    Accessed 2026-08-09
