Dishwasher

Dishwasher spray systems, racks, filtration, drying and buyer checks

This profile separates racks, dosing, water heating, sump filtration, circulation, spray coverage, drainage, drying and leak protection so buyers can verify exact dishwasher fit and service requirements.

Included
  • Built-in and freestanding household automatic dishwashers
  • Models with racks, sump, circulation pump and spray system
Excluded
  • Commercial flight, rack-conveyor and hood-type dishwashers
  • Manual sink washing and countertop ultrasonic cleaners
  • Unverified rack, pump, filter, hose or control-board compatibility

First published 2026-08-09 · Last verified 2026-08-09

This independent category reference is not plumbing, electrical, chemical, food-safety or installation advice. Confirm the exact regional model, manual, cabinet opening, supply, drain, detergent, tableware, cycle, rack and service-part numbers.

Official equipment reference

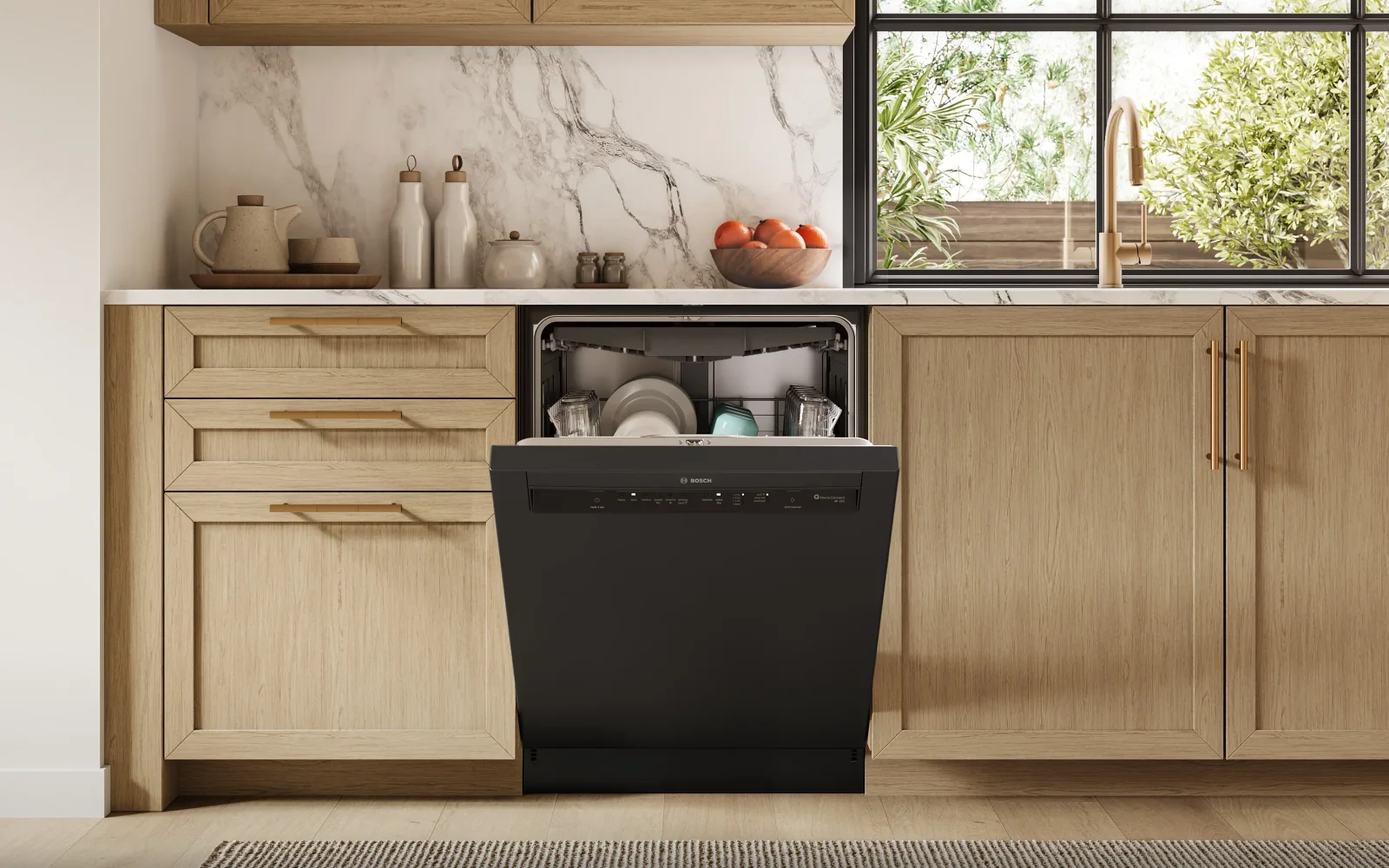

Bosch front-control dishwasher installed open in a kitchen with its racks visible
Official Bosch kitchen image showing a built-in dishwasher with the door and racks open; capacity, rack arrangement and cabinetry fit remain exact-model checks. Official image source
Dishwasher key facts
FactTechnical referenceScope boundary
Category boundaryHousehold rack-loaded automatic washer using heated water and pumped sprayHousehold automatic dishwashers; commercial warewashing excluded.
Buyer verificationMatch cabinet, utilities, rack geometry, cycle, filter and service parts to exact modelExact market model and site.

WCB explanatory visual

Dishwasher working system

An original system map synthesized from reviewed operator manuals. It explains functional flow, not a universal machine architecture.

  1. 01

    Fill, heat and dose

    Inlet valve, safety float, heater, detergent and rinse-aid dispensers

    Admits and conditions water and releases approved chemistry.

    EvidenceOfficial specifications identify hidden heaters, dispensers and safety controls by model.

    ScopeExact water, chemistry and cycle.

    Verified2026-08-09

    Sourceslg-ldnpq445, bosch-she43dm6n, whirlpool-wdt750

  2. 02

    Recirculate and spray

    Sump, filter, circulation pump, manifold and spray arms

    Filters and repeatedly sprays wash liquid across loaded racks.

    EvidenceManufacturer pages document model-specific wash arms, pumps and filtration.

    ScopeApproved loading and maintained filter system.

    Verified2026-08-09

    Sourceslg-ldnpq445, samsung-dw80, beko-bdfn26430

  3. 03

    Drain and dry

    Drain pump, hose, heat or condensation path, fan or automatic door where fitted

    Removes wash liquid and applies the selected drying process.

    EvidenceOfficial pages distinguish heated, condensation and auto-open drying functions.

    ScopeExact cycle, installation and model.

    Verified2026-08-09

    Sourcesbosch-she43dm6n, lg-ldnpq445, miele-g5008, electrolux-efdish

Equipment taxonomy

Main dishwasher formats

These formats describe operator relationship and task scale. None is a universal winner.

Open Bosch dishwasher with loaded upper and lower racks
Official field reference

Official Bosch product image illustrating the rack-and-spray format; pictured loading does not override the exact loading and material instructions.

Buyer focusUse the format as a starting point, then compare the operating envelope, utilities, duty cycle, operator workflow, accessory system and the exact configured machine.

Official image source

Built-in dishwasher

Task scale
Fixed household kitchen installation
Operator
User loads racks, doses chemistry and starts a cycle
Space
Cabinet opening, door swing, toe kick, supply, drain and anchoring
Limit
Nominal width does not establish cabinet or panel fit.

EvidenceBosch, LG, Samsung and Whirlpool publish built-in models.

ScopeNamed regional configurations.

Verified2026-08-09

Sourcesbosch-she43dm6n, lg-ldnpq445, samsung-dw80, whirlpool-wdt750

Freestanding dishwasher

Task scale
Household installation with finished external panels
Operator
User loads and operates a complete freestanding cabinet
Space
Floor footprint, counter clearance, hoses and door swing
Limit
Freestanding does not mean portable or installation-free.

EvidenceBeko and Electrolux publish freestanding product configurations in selected markets.

ScopeExact market model.

Verified2026-08-09

Sourcesbeko-bdfn26430, electrolux-efdish

Specification dictionary

What the performance metrics do—and do not—mean

Dishwasher performance metric dictionary
MetricPurchasing meaningReporting boundaryComparison caution
Cleaning and drying performanceResult under a defined load, soil, detergent, cycle and assessment methodTest method, cycle duration, loading and drying definition must matchFeature names or maximum temperature do not establish the test result.
Capacity and rack fitSource-declared place settings and usable loading geometryPlace-setting conventions do not represent every pot, bottle or regional tableware setA larger setting count can still have poorer task fit.
Water, energy and soundResource demand and source-declared operating noise under specified programsProgram, test method, installation and market label differDo not compare annual, per-cycle and maximum figures as equivalent.
Cleaning and drying performance evidence

EvidenceIEC 60436 defines measurement methods while manufacturers publish model programs.

ScopeNamed method and exact model.

Verified2026-08-09

Sourcesiec-60436, bosch-she43dm6n, lg-ldnpq445

Capacity and rack fit evidence

EvidenceOfficial pages publish model-specific rack layouts and setting counts.

ScopeExact racks and declared loading method.

Verified2026-08-09

Sourceslg-ldnpq445, miele-g5008, beko-bdfn26430

Water, energy and sound evidence

EvidenceOfficial model specifications publish qualified energy, water and dBA data.

ScopeExact model and regional test basis.

Verified2026-08-09

Sourceslg-ldnpq445, samsung-dw80, whirlpool-wdt750, miele-g5008

Evidence + WCB interpretation

Application-fit matrix

Official application evidence does not establish automatic suitability. Each row shows what still needs to be tested.

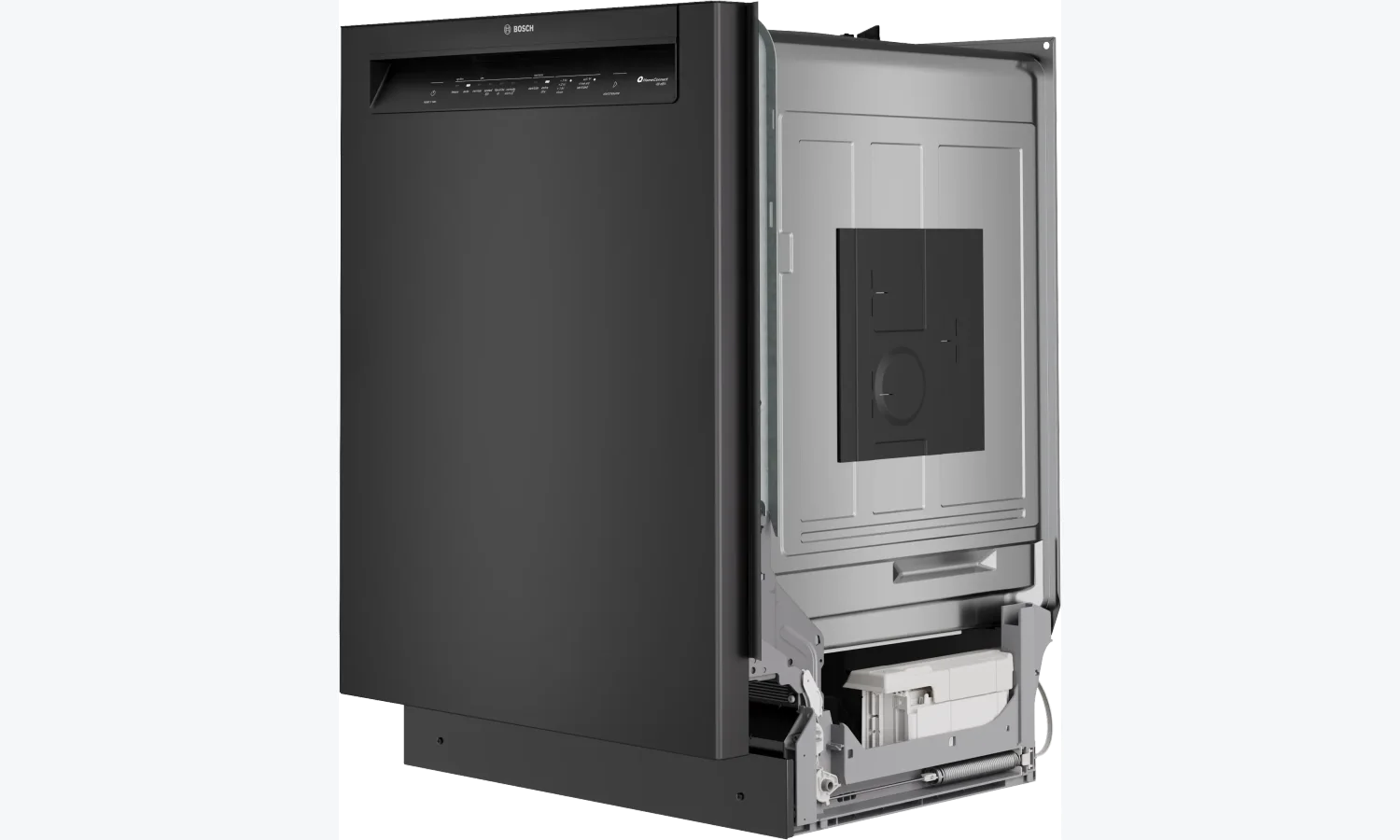

Bosch dishwasher shown from front and rear-side angles
Official field reference

Official Bosch product image illustrating cabinet, door and rear service connections; exact water, drain and electrical requirements remain model-specific.

Buyer focusTreat the photographed setting as context only. Validate utilities, surface compatibility, operating space, operator controls, environmental conditions and the planned work process on site.

Official image source

Routine mixed tableware loads

EvidenceOfficial sources document model-specific racks and wash systems.

ScopeApproved tableware and exact model.

Verified2026-08-09

Sourcesbosch-she43dm6n, lg-ldnpq445, samsung-dw80, miele-g5008

WCB assessment

Trial actual plates, bowls, glasses and utensils in the delivered racks.

Basis
Rack geometry, spray shadowing, soil, detergent and cycle interact.
Limitations
Place settings and spray-arm count do not guarantee fit or cleaning.
Buyer action
Record loading time, blocked items, cleaning, drying and unloading condition.

Cabinet-integrated installation

EvidenceManufacturer instructions provide model-specific dimensions and utility requirements.

ScopeActual site and exact model.

Verified2026-08-09

Sourcesbosch-she43dm6n, whirlpool-wdt750, lg-ldnpq445

WCB assessment

Verify the full opening, services, anchoring and open-door envelope.

Basis
Cabinet depth, panel, hinge, hose and service routing determine fit.
Limitations
24-inch or 60-cm labels do not establish interchangeability.
Buyer action
Attach measured site drawings and the exact installation sheet to the order.

System component map

Component families and compatibility boundaries

Component families are labels only. No component link or cross-model compatibility is claimed.

WCB dishwasher component verification map
WCB technical diagram

WCB diagram connecting inlet, heating, dosing, sump, filter, circulation, spray, rack, drain and drying checks; it does not establish part compatibility.

Buyer focusBefore substitution or service work, match the current manual, model and serial range, part number, physical interface, approved material or chemistry, and electrical configuration.

Evidence sourcesiec-60436, iec-60335-2-5, bosch-she43dm6n, lg-ldnpq445, samsung-dw80, whirlpool-wdt750, miele-g5008

Inlet, heating and dosing

Admits water, heats where configured and meters cleaning chemistry.

Common variants
  • Hidden heater
  • Flow-through heater
  • Manual detergent and rinse-aid dispensers
Critical checks
  • Valve and heater codes
  • Water pressure and temperature
  • Approved detergent and rinse aid

EvidenceOfficial pages show model-specific water and chemistry arrangements.

ScopeExact model and market; no cross-model fit.

Verified2026-08-09

Sourcesbosch-she43dm6n, lg-ldnpq445, whirlpool-wdt750

Sump, filter, pump and spray system

Recirculates filtered wash liquid across the racks.

Common variants
  • Manual-clean filter
  • Model-specific soil sensor
  • Two-, three- or four-device spray layouts
Critical checks
  • Filter and pump part numbers
  • Spray-arm clearance
  • Sensor and controller compatibility

EvidenceManufacturers publish materially different circulation and spray architectures.

ScopeExact serial family.

Verified2026-08-09

Sourceslg-ldnpq445, samsung-dw80, beko-bdfn26430

Racks, drain and drying

Positions the load, removes liquid and completes model-specific drying.

Common variants
  • Two or three racks
  • Heated or condensation drying
  • Automatic door opening
Critical checks
  • Rack and rail codes
  • Drain height and hose routing
  • Vent and cabinet requirements

EvidenceOfficial model pages distinguish rack and drying systems.

ScopeExact model and installation.

Verified2026-08-09

Sourcesbosch-she43dm6n, lg-ldnpq445, miele-g5008, electrolux-efdish

Verified relationships

Related brands and representative models

Representative, not exhaustive. A link means the official source connects the named brand and model; it does not establish a factory, OEM or component-supplier relationship.

7 verified models
Representative dishwasher models
BrandModelSubtypeOfficial specification referenceMarket scopeVerifiedSource
Bosch Home AppliancesSHE43DM6N24-inch front-control built-in dishwasher
  • Front-control format
  • Three-rack configuration
  • Model-specific drying system
Bosch US2026-08-09bosch-she43dm6n
LG Home AppliancesLDNPQ445S24-inch top-control built-in dishwasher
  • 16 source-stated place settings
  • Four source-stated spray arms
  • Auto-open drying
LG US2026-08-09lg-ldnpq445
Samsung Home AppliancesDW80B7070US24-inch smart built-in dishwasher
  • StormWash+ system
  • AutoRelease door drying
  • Third rack
Samsung US2026-08-09samsung-dw80
WhirlpoolWDT750SAKZ24-inch top-control built-in dishwasher
  • Third-level rack
  • Adjustable second rack
  • Heated dry option
Whirlpool US2026-08-09whirlpool-wdt750
MieleG 5008 SCU ActiveBuilt-under dishwasher
  • Cutlery tray
  • AutoOpen drying configuration
  • Model-specific rack system
Miele US2026-08-09miele-g5008
BekoBDFN26430X60-cm freestanding dishwasher
  • 14 source-stated place settings
  • Freestanding cabinet
  • Model-specific spray and drying programs
Beko UK2026-08-09beko-bdfn26430
ElectroluxESA47210SW60-cm freestanding dishwasher
  • AirDry configuration
  • Freestanding format
  • Model-specific rack layout
Electrolux Europe2026-08-09electrolux-efdish

WCB decision support

Procurement decision matrix

No composite score or brand ranking. Each row identifies a comparison trap and the next verification action.

WCB assessment

Clean and dry actual household tableware

Verify
Rack fit, spray access, cycle result and drying
Comparison trap
Ranking by place settings, spray count or dBA alone
Assessment
Use matched witnessed loads with documented chemistry and cycle.
Basis
Loading, soil, water, detergent, spray and drying interact.
Limitations
Catalogue metrics do not establish achieved result.
Buyer action
Compare loading work, rejects, residual water, time and resource use.

EvidenceIEC and official sources expose different performance boundaries.

ScopeExact model and test load.

Verified2026-08-09

Sourcesiec-60436, bosch-she43dm6n, lg-ldnpq445, samsung-dw80

WCB assessment

Control installation and service risk

Verify
Cabinet, hoses, pump, filter, racks, heater and controls
Comparison trap
Assuming a common width or family label proves interchangeability
Assessment
Quote the complete exact-model installation and service package.
Basis
Connections, hinges and component codes vary.
Limitations
Future part availability is not guaranteed.
Buyer action
Obtain site drawing and five-year part codes, prices and lead times.

EvidenceOfficial installation and product records are model-specific.

ScopeMarket and serial family.

Verified2026-08-09

Sourcesbosch-she43dm6n, whirlpool-wdt750, miele-g5008

Engineering validation

Checks before parts, configuration or service decisions

This checklist narrows verification work; it is not a compatibility guarantee or repair manual.

01

Electrical, water, drain and cabinet installation

Incorrect utilities, anchoring or hose routing can create leak, heat and safety risks.

Required actionFollow the exact installation instructions and local requirements.

EvidenceIEC safety scope and manufacturer documents define exact-product requirements.

ScopeRegional product and installation.

Verified2026-08-09

Sourcesiec-60335-2-5, bosch-she43dm6n, whirlpool-wdt750

02

Filter, spray and load maintenance

Blocked filters or spray paths can alter circulation and cleaning.

Required actionInspect loading clearance and follow the exact filter and spray-arm service schedule.

EvidenceOfficial manuals and product materials define model-specific maintenance.

ScopeExact rack and circulation system.

Verified2026-08-09

Sourceslg-ldnpq445, samsung-dw80, miele-g5008

Standards boundary

Safety and performance references

IEC 60436:2015

JurisdictionInternational

Version2015

ApplicabilityMethods for measuring performance of household electric dishwashers.

EvidenceIEC publishes the standard scope and edition.

ScopeConfirm regional adoption and declared test method.

Verified2026-08-09

Sourcesiec-60436

IEC 60335-2-5:2025

JurisdictionInternational

Version2025

ApplicabilityParticular safety requirements for household dishwashers.

EvidenceIEC publishes the standard scope and current edition.

ScopeConfirm regional conformity for the exact product.

Verified2026-08-09

Sourcesiec-60335-2-5

Technical developments

Selected changes in dishwasher systems

  1. Current dishwasher platforms add more model-specific spray and drying formats

    Reviewed current official ranges include multi-arm washing, third racks, heated, condensation or automatic-door drying in different combinations.

    EvidenceOfficial product pages document the named functions without establishing equal performance.

    ScopeNamed products available at verification time.

    Verified2026-08-09

    Sourcesbosch-she43dm6n, lg-ldnpq445, samsung-dw80, miele-g5008

Evidence record

Sources

First published 2026-08-09 · Last verified 2026-08-09 · Last material modification 2026-08-09

  1. standard

    IEC 60436:2015 Electric dishwashers for household use - Methods for measuring the performance

    International Electrotechnical Commission

    Open official source

    Accessed 2026-08-09

  2. standard

    IEC 60335-2-5:2025 Household and similar electrical appliances - Safety - Dishwashers

    International Electrotechnical Commission

    Open official source

    Accessed 2026-08-09

  3. manufacturer

    SHE43DM6N Front Control Dishwasher

    Bosch Home Appliances

    Open official source

    Accessed 2026-08-09

  4. specification

    LDNPQ445 2026 Dishwasher Specification Sheet

    LG Electronics USA

    Open official source

    Accessed 2026-08-09

  5. manufacturer

    DW80B7070US Smart Dishwasher with StormWash+

    Samsung US

    Open official source

    Accessed 2026-08-09

  6. manufacturer

    WDT750SAKZ Large Capacity Dishwasher with 3rd Rack

    Whirlpool

    Open official source

    Accessed 2026-08-09

  7. manufacturer

    G 5008 SCU Active Dishwasher

    Miele USA

    Open official source

    Accessed 2026-08-09

  8. manufacturer

    BDFN26430X Freestanding Dishwasher

    Beko UK

    Open official source

    Accessed 2026-08-09

  9. manufacturer

    ESA47210SW AirDry Dishwasher

    Electrolux

    Open official source

    Accessed 2026-08-09
