Independent Technical Reference
Commercial air mover airflow, placement, electrical loading and buyer checks
This profile explains air-mover formats, airflow reporting, outlet direction, speed, positioning, electrical loading, daisy chaining and the boundary between evaporation and moisture removal.
First published 2026-08-09 · Last verified 2026-08-09
This independent category reference is not restoration, electrical, mould, indoor-air-quality or structural-drying advice. Air movers can spread contaminants, overload circuits or create trip hazards. Confirm the current manual, electrical listing, site contamination status, placement plan, monitoring method and local requirements before use.
| Fact | Technical reference | Scope boundary |
|---|---|---|
| Category boundary | Moves air to accelerate evaporation; it does not remove moisture from the space | Named air movers; dehumidifiers are excluded. |
| Airflow reporting | CFM, m³/min, m³/h and outlet velocity are not interchangeable claims | Source-specific test points and modes. |
| Electrical planning | Current draw, voltage, outlets and daisy-chain limits are model-specific | Exact regional version and circuit. |
| Buyer verification | Validate placement, electrical load, contamination, noise and measured moisture progress | Actual task and monitored site. |
WCB explanatory visual
An original system map synthesized from reviewed operator manuals. It explains functional flow, not a universal machine architecture.
Intake guard and housing
Admits room air while separating users and debris from moving components.
Electric motor and thermal protection
Drives the fan at one or more selected speeds.
Centrifugal or model-specific fan
Creates the airflow delivered through the outlet.
Outlet, housing angle and stand
Directs moving air across the intended surface or cavity only where approved.
Site monitoring and dehumidification plan
Tracks moisture movement and provides removal capacity where required.
Equipment taxonomy
These formats describe operator relationship and task scale. None is a universal winner.

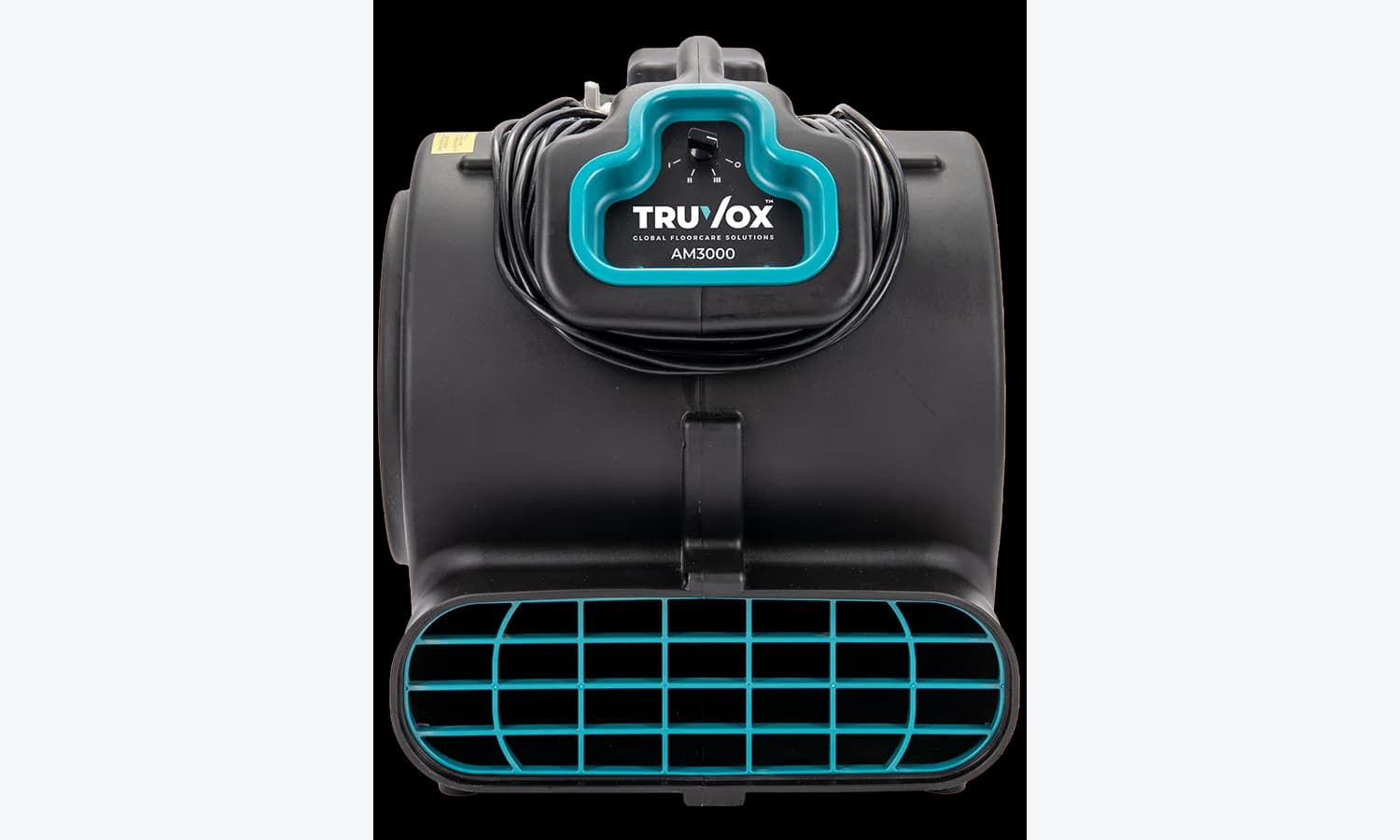

Official Truvox product image showing a compact three-speed centrifugal-style air mover.
Buyer focusUse the format as a starting point, then compare the operating envelope, utilities, duty cycle, operator workflow, accessory system and the exact configured machine.
Official image sourceSpecification dictionary
| Metric | Purchasing meaning | Reporting boundary | Comparison caution |
|---|---|---|---|
| Airflow volume | Nominal quantity of air moved at a stated speed | CFM, m³/min and m³/h can use different test methods and points | Do not compare converted units unless measurement conditions match. |
| Outlet velocity | Local air speed reported at an unspecified or stated point | Not the same quantity as volumetric airflow | m/s cannot be ranked directly against CFM. |
| Speed settings | Allows airflow and noise adjustment | Three settings do not imply matched outputs across machines | Speed count alone does not establish useful drying range. |
| Current draw and voltage | Circuit loading and fleet deployment | Regional voltage and outlet features differ | Daisy chaining is limited by the exact manual, circuit and downstream load. |
| Sound and placement | Occupied-area acceptance and safe route planning | Sound values and test methods may be absent or unmatched | Quiet positioning claims do not replace site measurement. |
Evidence + WCB interpretation
Official application evidence does not establish automatic suitability. Each row shows what still needs to be tested.

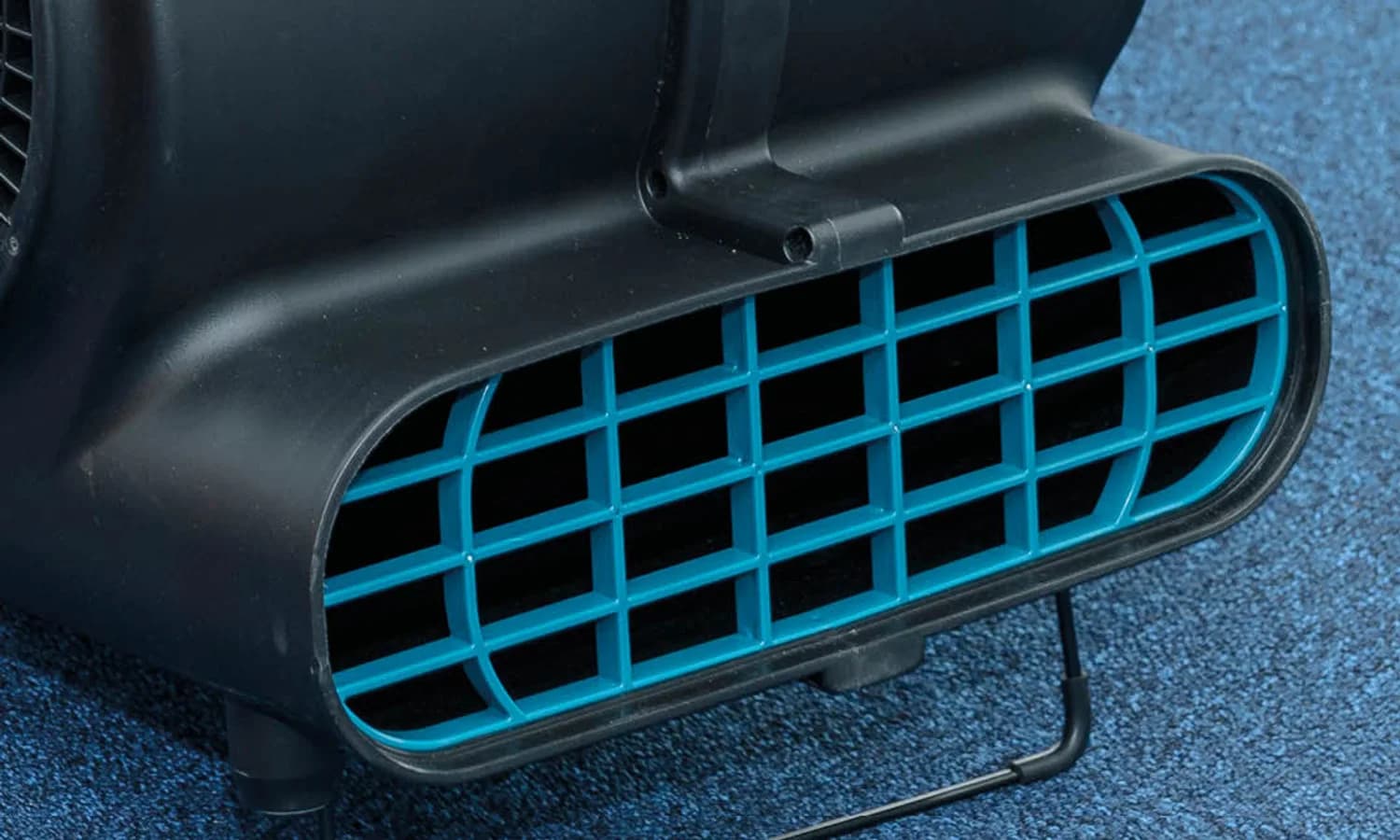

Official Truvox detail image illustrating outlet direction near carpet; safe placement and drying verification remain site-specific.
Buyer focusTreat the photographed setting as context only. Validate utilities, surface compatibility, operating space, operator controls, environmental conditions and the planned work process on site.
Official image sourceUse airflow to support evaporation only after confirming the textile, backing, adhesive and room process.
Contamination class, material condition and moisture map should be established before airflow starts.
Airflow must not create slip, aerosol, dust or pedestrian hazards.
System component map
Component families are labels only. No component link or cross-model compatibility is claimed.
WCB diagram separating intake, motor, fan, outlet, placement, circuit and moisture-monitoring checks. It does not establish part compatibility.
Buyer focusBefore substitution or service work, match the current manual, model and serial range, part number, physical interface, approved material or chemistry, and electrical configuration.
Evidence sourceskarcher-ab84, karcher-ab20, truvox-air, truvox-brochure, minuteman-a3s, clarke-directair, ipc-am3
Protects the fan path and supports transport and stacking.
Generate the air stream.
Directs airflow at the intended surface.
Connects the air mover to a suitable circuit.
Verifies whether the drying objective is progressing and complete.
Verified relationships
Representative, not exhaustive. A link means the official source connects the named brand and model; it does not establish a factory, OEM or component-supplier relationship.
| Brand | Model | Subtype | Official specification reference | Market scope | Verified | Source |
|---|---|---|---|---|---|---|
| Kärcher | AB 84 | High-output mobile air blower |
| Kärcher US commercial page | 2026-08-09 | karcher-ab84 |
| Kärcher | AB 20/1 Ec | Compact EC-motor air blower |
| Kärcher UK professional range | 2026-08-09 | karcher-ab20 |
| Truvox | AM3000 | Traditional multi-position air mover |
| Truvox 2024 catalogue | 2026-08-09 | truvox-air, truvox-brochure |
| Truvox | Hybrid Blower 3400 | Compact room and carpet dryer |
| Truvox 2024 catalogue | 2026-08-09 | truvox-air, truvox-brochure |
| Minuteman | A3S | Stackable low-amperage air mover |
| Minuteman official product page | 2026-08-09 | minuteman-a3s |
| Clarke | DirectAir Pro | Three-position restoration air mover |
| Clarke official fact sheet | 2026-08-09 | clarke-directair |
| IPC | AM3 | Four-position portable air mover |
| IPC official specification sheet | 2026-08-09 | ipc-am3 |
WCB decision support
No composite score or brand ranking. Each row identifies a comparison trap and the next verification action.
Engineering validation
This checklist narrows verification work; it is not a compatibility guarantee or repair manual.
Multiple air movers can overload a branch circuit or extension arrangement.
Required actionCalculate nameplate current and every downstream load against the exact circuit.
Airflow can redistribute dust, microbes or other contaminants.
Required actionComplete the site's contamination assessment before starting airflow.
Blocked intakes, unstable angles, cords and outlets can create operating hazards.
Required actionFollow exact approved positions and maintain intake, exit and pedestrian clearance.
A dry-looking surface does not prove concealed materials or the room have reached the target.
Required actionDefine and record material and ambient readings before, during and after operation.
Standards boundary
JurisdictionInternational
Version2024
ApplicabilityElectrical-fan safety for products within its household-and-similar scope, including certain appliances used in shops and light industry.
Technical developments
IEC published the fourth edition of IEC 60335-2-80 with alignment and technical revisions for covered electric fans.
